OEM

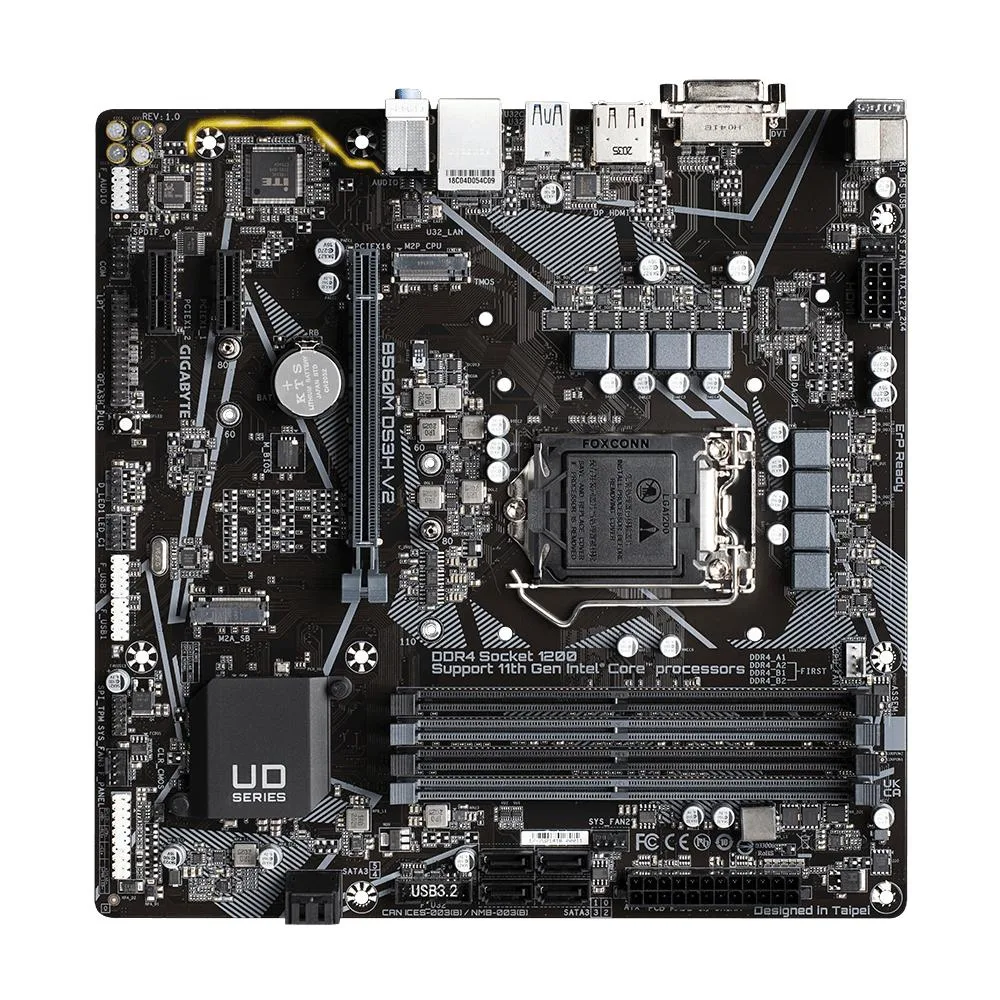

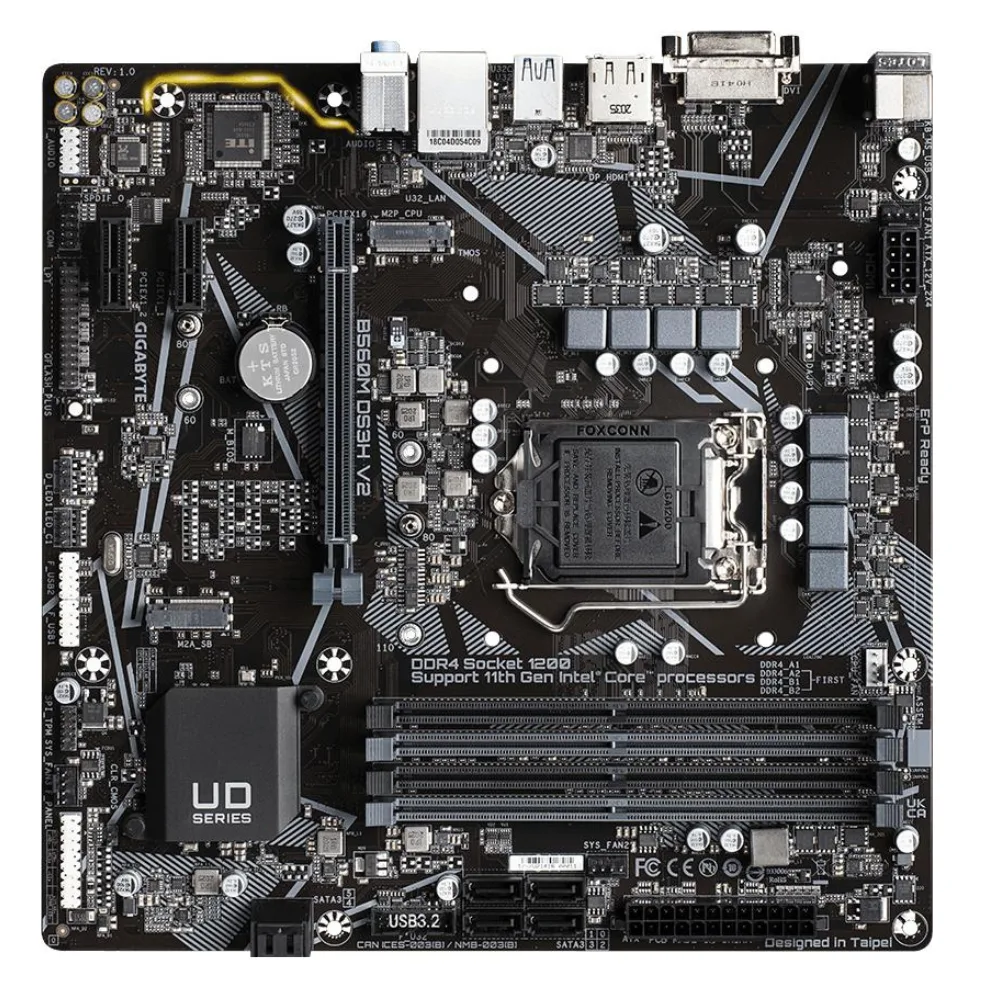

Gigabyte B560M DS3H V2 Intel B560 LGA1200 Micro-ATX DDR4 Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 11,490.00 Starting price (MOQ 1)

Min order: 1
Supports exchange: Yes

Support

List your business & products here. Become a supplier.

Description

The Gigabyte B560M DS3H V2 is a feature-rich Micro-ATX motherboard designed for Intel 10th and 11th Generation processors. Built on the Intel B560 chipset, it offers support for PCIe 4.0, dual M.2 NVMe SSDs, up to 128GB DDR4 memory, USB Type-C connectivity, Gigabit LAN, and RGB Fusion 2.0. It is an excellent choice for gaming PCs, office workstations, home computers, and productivity-focused desktop builds.

Product Highlights
Intel B560 Express Chipset
Supports Intel 10th & 11th Gen LGA1200 Processors
4 DDR4 DIMM Slots Supporting Up to 128GB RAM
DDR4 Memory Overclocking Up to 5333MHz (OC)
PCIe 4.0 x16 Slot (with 11th Gen CPUs)
Dual M.2 NVMe SSD Slots
6 SATA III 6Gb/s Ports
USB 3.2 Gen1 Type-C Connectivity
Realtek Gigabit Ethernet LAN
RGB Fusion 2.0 and Smart Fan 6 Support

Full product details

Overview

Product name	Gigabyte B560M DS3H V2 Intel B560 LGA1200 Micro-ATX DDR4 Motherboard
Category	Motherboards
Brand	Gigabyte Technology
Model number	B560M DS3H V2
Enquiry only	No
Supports exchange	Yes

Pricing & MOQ

Base price	INR 11,490.00
Sample available	No
Sample price	INR 11,490.00
Min order quantity (MOQ)	1
Max order quantity	100

Technical Specs

Dimensions	24.4 × 24.4 cm
Weight	Approx. 1.2–1.5 kg

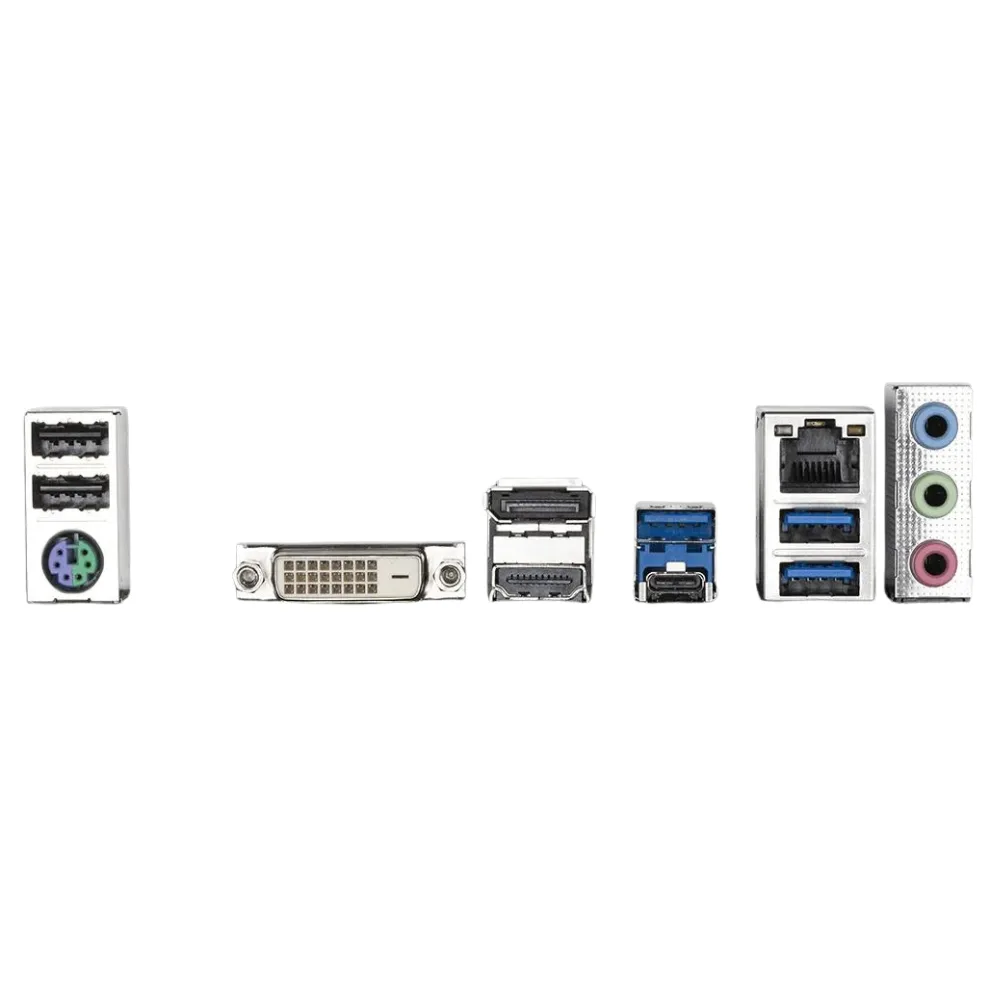

Technical specifications ChipsetIntel B560 Express CPU SocketLGA 1200 Form FactorMicro-ATX Memory TypeDDR4 Memory Slots4 x DDR4 DIMM Maximum Memory Capacity128GB BIOS TypeAMI UEFI BIOS PlatformIntel 10th & 11th Gen Processors Pentium SupportYes Celeron SupportYes PCIe 4.0 SupportYes (11th Gen CPUs Only) Memory Slots4 x DDR4 DIMM Maximum Capacity128GB Memory ArchitectureDual Channel XMP SupportYes Maximum Memory SpeedDDR4 5333MHz (OC) Standard Memory SupportDDR4 2133–3200MHz PCIe x16 Slot1 x PCIe 4.0 x16 (11th Gen CPU Required) PCIe x1 Slots2 x PCIe 3.0 x1 Multi-GPU SupportNo M.2 Slots2 Primary M.2PCIe 4.0 x4 NVMe (11th Gen CPU Required) Secondary M.2PCIe 3.0 x4 / SATA SATA Ports6 x SATA 6Gb/s Intel Optane SupportYes HDMI Port1 DisplayPort1 DVI-D Port1 Maximum Displays3 Maximum DP Resolution4096 × 2304 @ 60Hz Maximum HDMI Resolution4096 × 2160 @ 30Hz LAN ControllerRealtek GbE LAN Ethernet Speed10/100/1000 Mbps Wi-FiNo BluetoothNo Audio CodecRealtek HD Audio Codec Audio Channels2 / 4 / 5.1 / 7.1 Channel Audio FeaturesAudio Capacitors, Noise Guard USB 3.2 Gen1 Type-C1 USB 3.2 Gen1 Type-AMultiple USB 2.0Multiple HDMI1 DisplayPort1 DVI-D1 RJ-45 LAN1 Audio Jacks 33
