OEM

JWIPC W680 DDR5 Workstation Motherboard | Intel W680 | LGA1700 | ECC DDR5 Support

Supplier: Verified OEM partner New

Category: Motherboards

INR 35,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

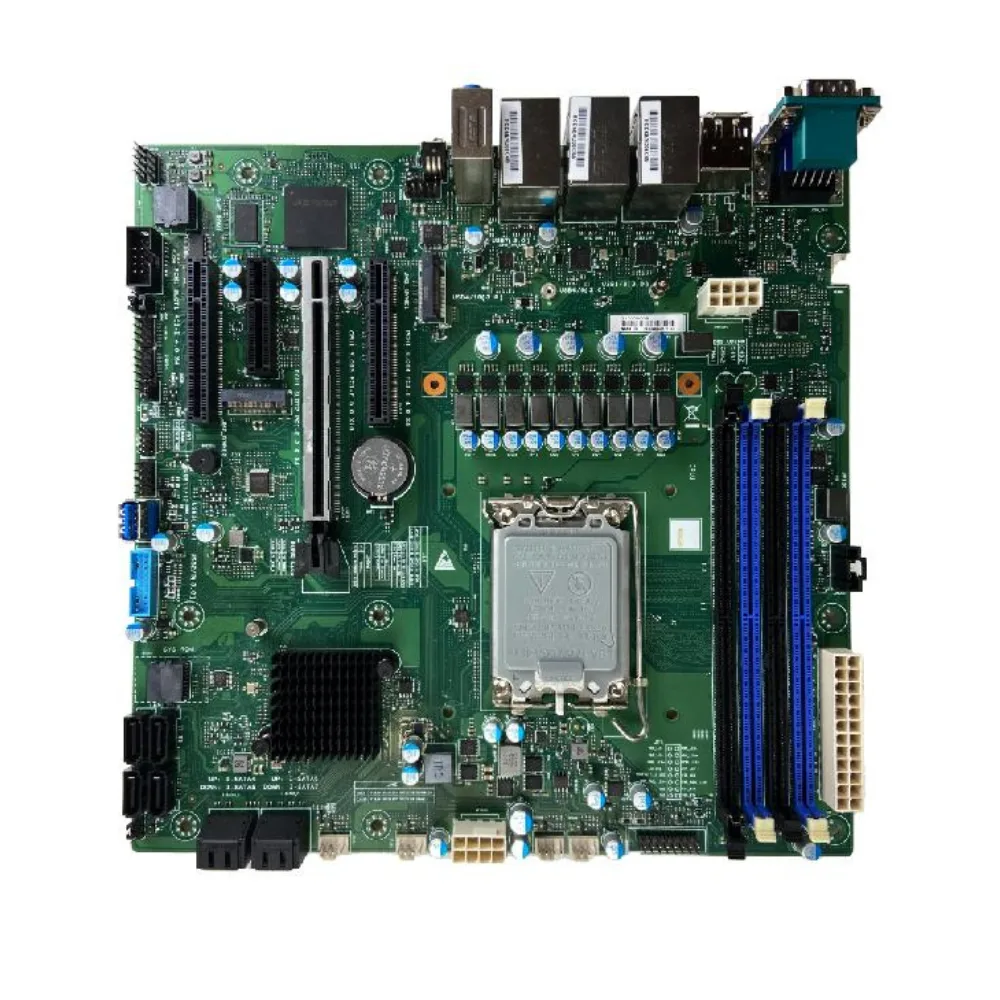

The JWIPC W680 DDR5 Workstation Motherboard is a professional-grade platform built around the Intel W680 chipset and LGA1700 socket. Designed for demanding workloads, it supports Intel 12th, 13th, and 14th Generation processors along with DDR5 ECC and non-ECC memory. With PCIe 5.0 expansion, multiple NVMe SSD slots, enterprise-class stability, and advanced workstation features, it is ideal for CAD design, content creation, virtualization, AI development, engineering applications, and server deployments. Its robust architecture ensures reliable performance for professionals who require powerful and stable computing environments.

Full product details

Overview
Product nameJWIPC W680 DDR5 Workstation Motherboard | Intel W680 | LGA1700 | ECC DDR5 Support
CategoryMotherboards
BrandJWIPC (JW)
Model numberW680 Series DDR5 Motherboard
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 35,000.00
Sample availableNo
Sample priceINR 35,000.00
Min order quantity (MOQ)1
Max order quantity10
Technical Specs
Dimensions305 mm × 244 mm
WeightApprox. 1.8 – 2.5 kg
Technical specifications
  • ChipsetIntel W680 Workstation Chipset
  • CPU SocketLGA1700
  • Supported ProcessorsIntel 12th, 13th & 14th Gen Core, Pentium Gold, Celeron
  • Form FactorATX
  • Memory TypeDDR5 ECC / Non-ECC UDIMM
  • Maximum ResolutionUp to 8K via DisplayPort (CPU dependent)
  • Memory Slots4 × DDR5 DIMM
  • Maximum Memory CapacityUp to 128GB–192GB (depending on CPU & BIOS support)
  • Memory ArchitectureDual Channel
  • Memory SpeedDDR5 4400–5600 MT/s
  • BIOSUEFI BIOS ECC
  • Memory SupportYes (W680 Platform)
  • PCIe x16 SlotPCIe 5.0 Support
  • Additional PCIe SlotsMultiple PCIe x8/x4 Expansion Slots
  • M.2 NVMe Slots2–3 × PCIe 4.0 M.2 (varies by revision)
  • SATA PortsUp to 8 SATA 6Gb/s
  • RAID SupportRAID 0, 1, 5, 10
  • TPM SupportTPM 2.0 Header
  • Thunderbolt HeaderSupported on some variants
  • LANDual Intel 2.5GbE or Gigabit LAN (varies by model)
  • Remote ManagementAvailable on workstation/server variants
  • Wi-FiOptional via M.2 Key-E Module
  • BluetoothOptional via Wi-Fi Module
  • HDMI1
  • DisplayPort1
  • VGA1
  • Multi-Display SupportYes
Supply, Shipping & Delivery
Production lead time (days)5
Supply ability per month100
Compliance & Customization
Warranty
  • 3 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
