MSI PRO B760M-P DDR5 Motherboard | Intel LGA1700 DDR5 Micro-ATX Board
OEM

MSI PRO B760M-P DDR5 Motherboard | Intel LGA1700 DDR5 Micro-ATX Board

Supplier: Verified OEM partner New

Category: Motherboards

INR 10,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

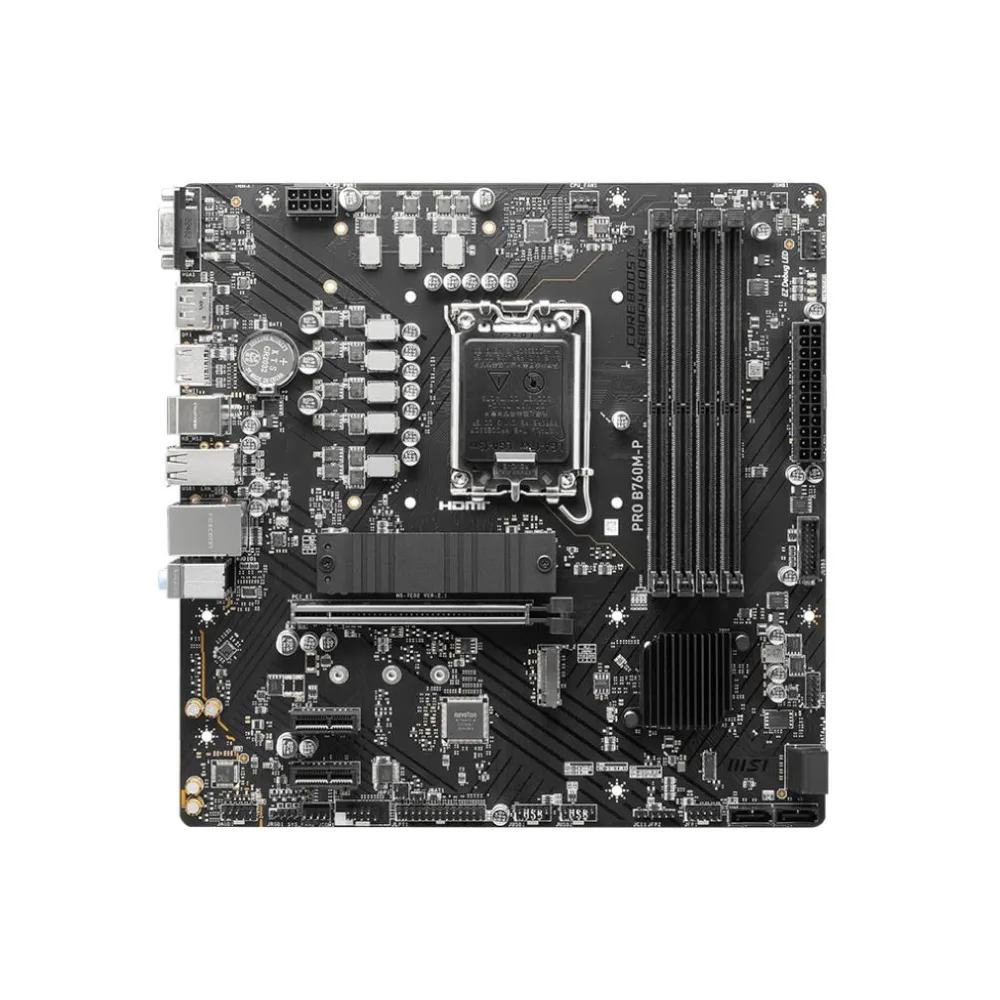

The MSI PRO B760M-P DDR5 is a reliable Micro-ATX motherboard designed for Intel 14th, 13th, and 12th Generation processors. Featuring four DDR5 memory slots with support for up to 256GB RAM, dual PCIe 4.0 M.2 SSD slots, PCIe 4.0 x16 graphics support, Gigabit LAN, and USB Type-C connectivity, it delivers excellent performance for office workstations, business desktops, software development systems, content creation PCs, and mainstream gaming builds. With MSI Core Boost, Memory Boost, EZ Debug LEDs, and Click BIOS 5, it provides a stable and user-friendly platform for modern Intel systems.

Full product details

Overview
Product nameMSI PRO B760M-P DDR5 Motherboard | Intel LGA1700 DDR5 Micro-ATX Board
CategoryMotherboards
BrandMSI
Model numberPRO B760M-P
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 10,000.00
Sample availableNo
Sample priceINR 10,000.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions243.84 × 243.84 mm
WeightApprox. 1.5 – 2.0 kg
Technical specifications
  • ChipsetIntel B760 Express
  • CPU SocketLGA1700
  • Supported ProcessorsIntel Core 14th, 13th & 12th Gen Processors, Pentium Gold & Celeron
  • Form FactorMicro-ATX
  • Memory TypeDDR5
  • Memory Slots4 × DDR5 DIMM
  • Maximum Memory Capacity256GB
  • Memory ArchitectureDual Channel
  • Memory SpeedUp to DDR5 6800+ MHz (OC)
  • BIOSUEFI Click BIOS 5
  • AudioRealtek ALC897 7.1 HD Audio
  • LANRealtek Gigabit LAN
  • XMP SupportIntel XMP 3.0
  • Memory SupportDDR5 4800–6800+ MHz (OC)
  • ECC SupportNon-ECC Unbuffered
  • Channel ArchitectureDual Channel
  • PCIe x16 Slot1 × PCIe 4.0 x16
  • PCIe x1 Slots2 × PCIe 4.0 x1
  • Steel Armor ProtectionYes
  • Resizable BARSupported
  • M.2 Slots2 × M.2 NVMe
  • M.2 InterfacePCIe 4.0 x4
  • SATA Ports4 × SATA III 6Gb/s
  • RAID SupportRAID 0, 1, 5, 10
  • USB Type-C1 × USB 3.2 Gen2 (10Gbps)
  • USB 3.2 Gen1Up to 3 Ports
  • USB 2.0Up to 8 Ports

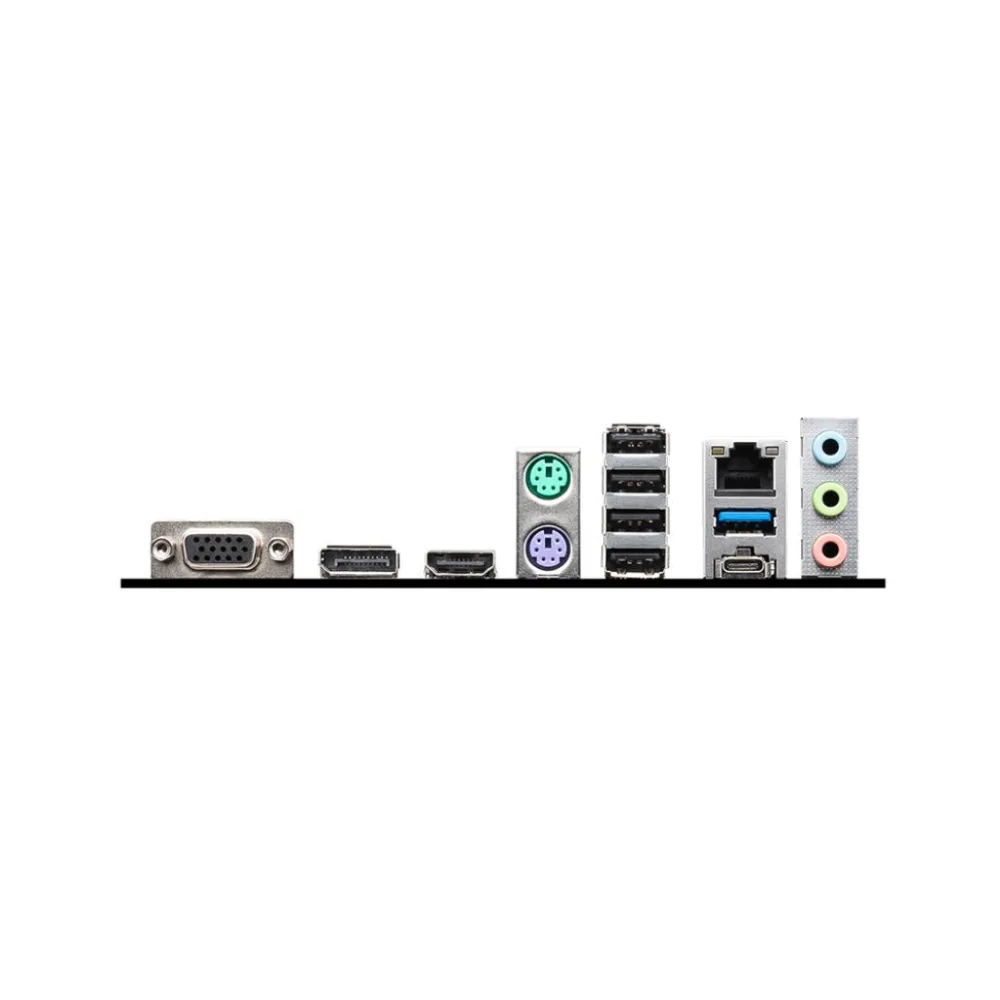

  • HDMI1
  • DisplayPort1
  • VGA (D-Sub)1
  • HDMI ResolutionUp to 4K @ 30Hz
  • DisplayPort ResolutionUp to 4K @ 60Hz
  • USB 3.2 Gen2 Type-C1
  • USB 3.2 Gen1 Type-A1
  • USB 2.04
  • Gigabit LAN Port1
  • PS/2 Ports2
  • Audio Jacks3
  • HDMI1
  • DisplayPort1
  • VGA1
Supply, Shipping & Delivery
Production lead time (days)5
Supply ability per month100
Compliance & Customization
Warranty
  • 3 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
