Gigabyte Z790 D DDR5 Motherboard | Intel Z790 | LGA1700 | PCIe 5.0 ATX Motherboard
OEM

Gigabyte Z790 D DDR5 Motherboard | Intel Z790 | LGA1700 | PCIe 5.0 ATX Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 19,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

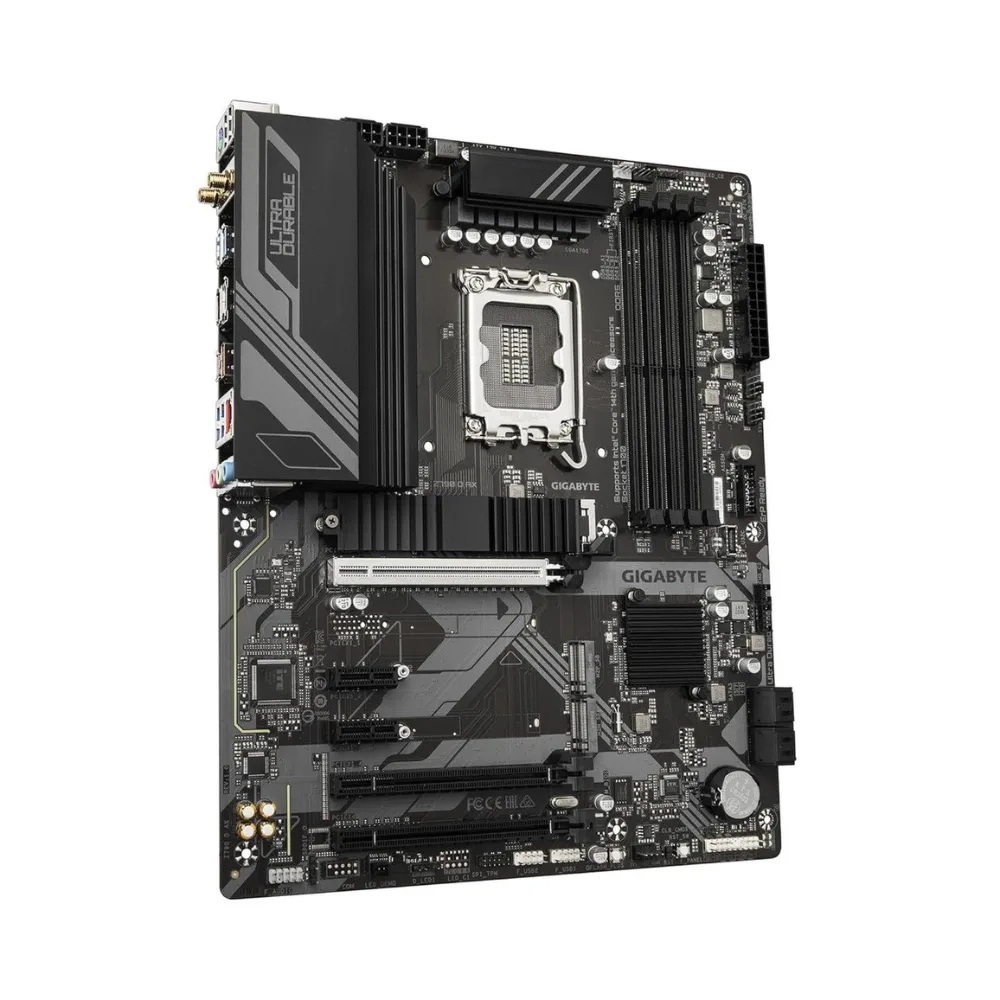

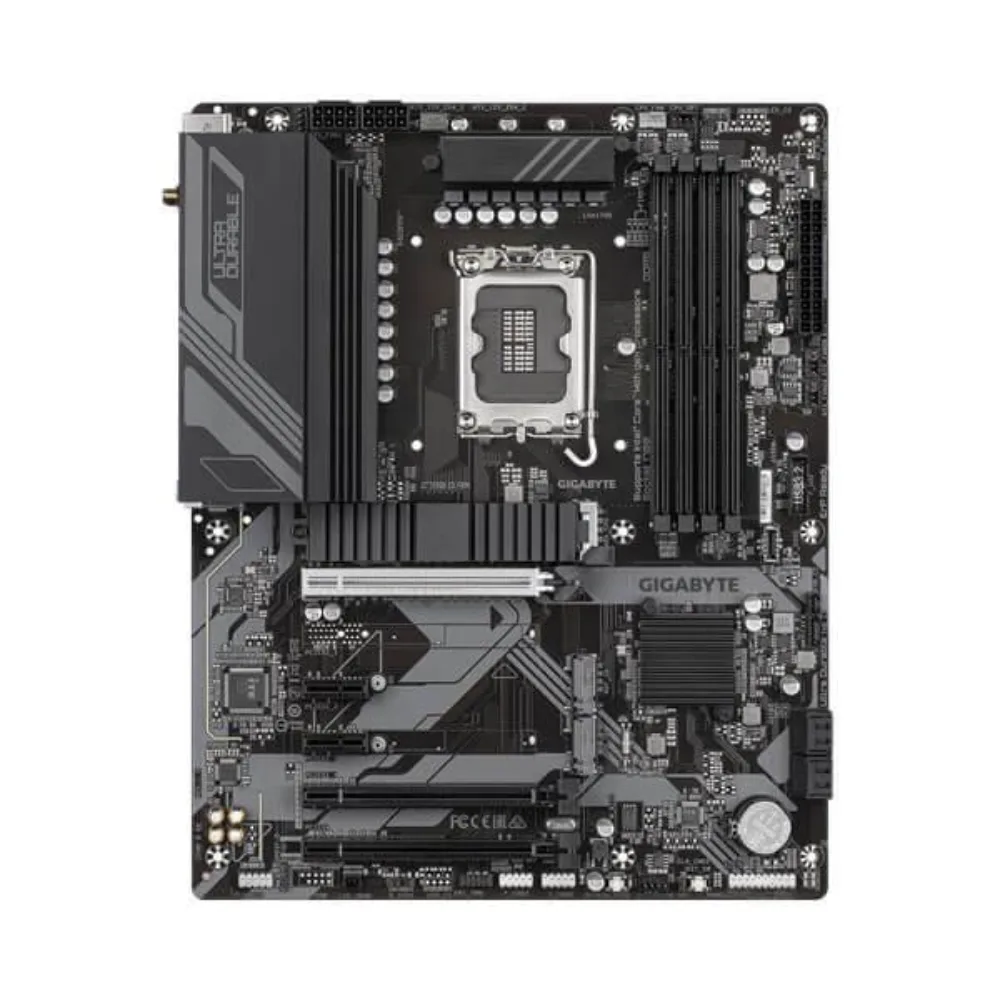

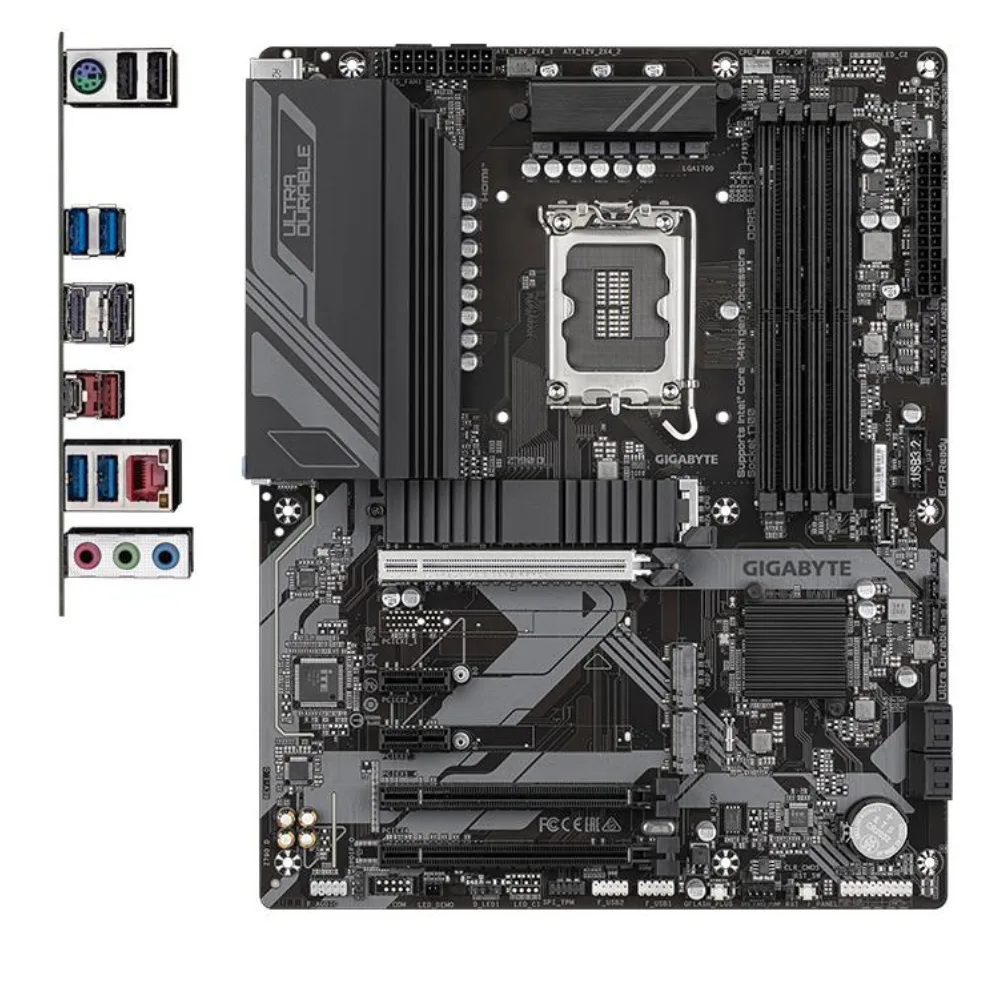

The Gigabyte Z790 D DDR5 Motherboard is a high-performance ATX platform built for Intel 12th, 13th, and 14th Generation processors. Powered by the Intel Z790 chipset and LGA1700 socket, it supports up to 256GB of DDR5 memory with speeds exceeding 7600MHz through overclocking. Featuring PCIe 5.0 graphics support, triple PCIe 4.0 M.2 NVMe slots, 2.5GbE LAN, Smart Fan 6 cooling technology, and Q-Flash Plus BIOS update functionality, it delivers the performance, stability, and expandability required for gaming, content creation, software development, and advanced desktop computing.

Full product details

Overview
Product nameGigabyte Z790 D DDR5 Motherboard | Intel Z790 | LGA1700 | PCIe 5.0 ATX Motherboard
CategoryMotherboards
BrandGigabyte
Model numberZ790 D
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 19,000.00
Sample availableNo
Sample priceINR 19,000.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions305 × 244 mm
WeightApprox. 1.8 – 2.3 kg
Technical specifications
  • ChipsetIntel Z790 Express
  • CPU SocketLGA1700
  • Supported ProcessorsIntel Core 14th, 13th & 12th Gen, Pentium Gold, Celeron
  • Form FactorATX
  • Memory TypeDDR5
  • Memory Slots4 × DDR5 DIMM
  • Maximum Memory CapacityUp to 256GB
  • Memory ArchitectureDual Channel
  • Memory SpeedUp to DDR5 7600+ MHz (OC)
  • BIOS256Mb AMI UEFI BIOS N
  • AudioRealtek HD Audio Codec (7.1 Channel)
  • LANRealtek 2.5GbE LA
  • Memory Slots4 × DDR5 DIMM
  • Maximum Capacity256GB (4 × 64GB)
  • XMP SupportYes (XMP 3.0)
  • ECC SupportECC UDIMM Supported (Non-ECC Mode)
  • Non-ECC SupportYes
  • Channel ArchitectureDual Channel DDR5
  • Primary GPU Slot1 × PCIe 5.0 x16
  • Secondary PCIe Slot1 × PCIe 4.0 x4
  • Additional Slots1 × PCIe x16 (x1 mode), 2 × PCIe x1
  • PCIe EZ-LatchYes
  • Multi-GPU SupportLimited (Workstation Expansion Supported)
  • M.2 Slots3 × PCIe 4.0 x4 M.2
  • SATA Ports4 × SATA 6Gb/s
  • RAID SupportRAID 0, 1, 5, 10
  • USB Type-C Rear1 × USB 3.2 Gen2 Type-C (10Gbps)
  • Front USB-C Header1 × USB 3.2 Gen1 Type-C
  • USB 3.2 Gen16 Ports
  • USB 2.06 Ports
  • HDMI 2.11
  • DisplayPort 1.21
  • Maximum HDMI Resolution4096 × 2160 @ 60Hz
  • Maximum DP Resolution4096 × 2304 @ 60Hz
  • USB Type-C 10Gbps1
  • USB 3.2 Gen2 Type-A1
  • USB 3.2 Gen1 Type-A4
  • USB 2.0 2 RJ-45 2.5GbE LAN1
  • PS/2 Combo Port1
  • Audio Jacks3
Supply, Shipping & Delivery
Production lead time (days)7
Supply ability per month100
Compliance & Customization
Warranty
  • 3 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
