MSI PRO H510M-B DDR4 Motherboard | Intel LGA1200 Micro-ATX Board with M.2 NVMe Support
OEM

MSI PRO H510M-B DDR4 Motherboard | Intel LGA1200 Micro-ATX Board with M.2 NVMe Support

Supplier: Verified OEM partner New

Category: Motherboards

INR 7,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

Upgrade your PC with the MSI PRO H510M-B DDR4 motherboard. Featuring Intel LGA1200 socket, support for 10th Gen Intel processors, dual-channel DDR4 memory up to 64GB, M.2 NVMe SSD support, Gigabit LAN, HDMI, VGA, and Micro-ATX form factor for business and home computing.

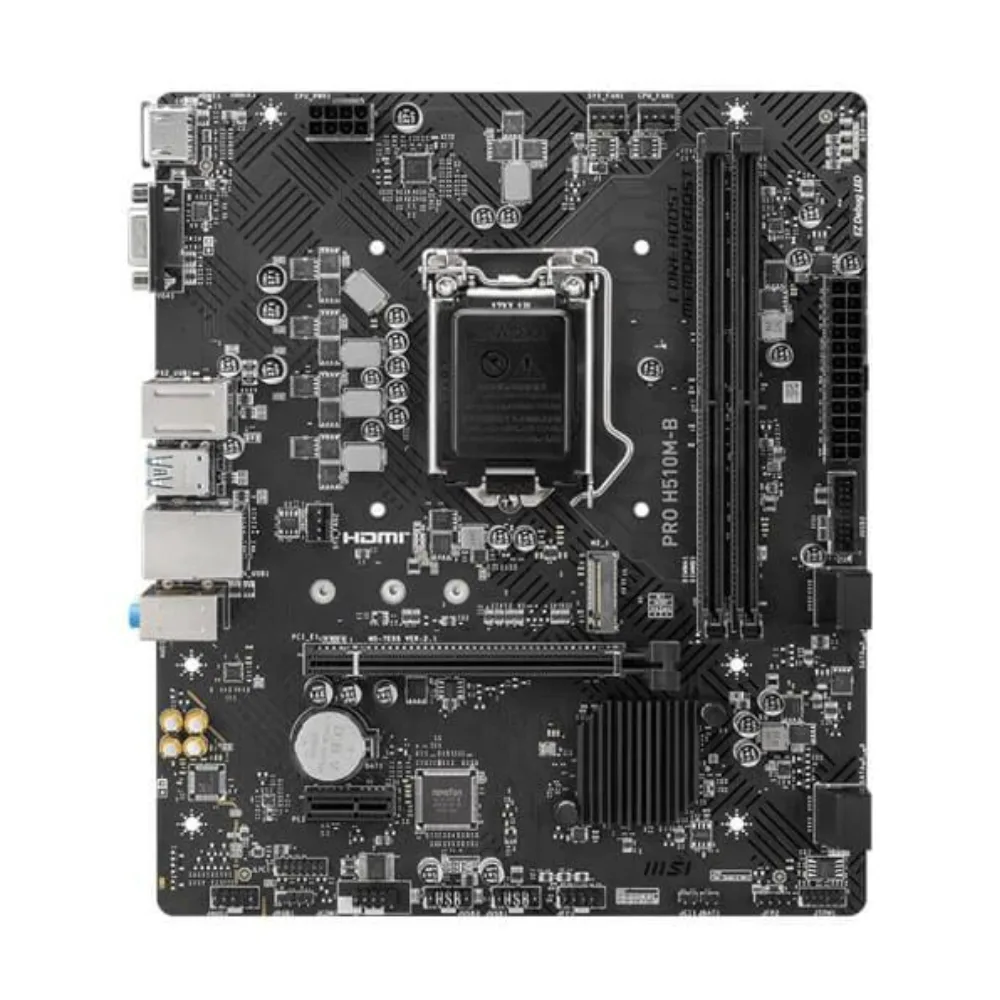

The MSI PRO H510M-B is a compact Micro-ATX motherboard designed for Intel 10th Generation processors. It features 2 DDR4 memory slots supporting up to 64GB RAM, an M.2 NVMe slot, four SATA ports, Gigabit LAN, and HDMI/VGA display outputs. Its compact size and business-oriented design make it suitable for office desktops, educational systems, POS machines, and budget workstation builds.

Full product details

Overview
Product nameMSI PRO H510M-B DDR4 Motherboard | Intel LGA1200 Micro-ATX Board with M.2 NVMe Support
CategoryMotherboards
BrandMSI
Model numberPRO H510M-B
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 7,000.00
Sample availableNo
Sample priceINR 7,000.00
Min order quantity (MOQ)1
Max order quantity100
Bulk pricing notes
  • Upgrade your PC with the MSI PRO H510M-B DDR4 motherboard. Featuring Intel LGA1200 socket, support for 10th Gen Intel processors, dual-channel DDR4 memory up to 64GB, M.2 NVMe SSD support, Gigabit LAN, HDMI, VGA, and Micro-ATX form factor for business and home computing. The MSI PRO H510M-B is a compact Micro-ATX motherboard designed for Intel 10th Generation processors. It features 2 DDR4 memory slots supporting up to 64GB RAM, an M.2 NVMe slot, four SATA ports, Gigabit LAN, and HDMI/VGA display outputs. Its compact size and business-oriented design make it suitable for office desktops, educational systems, POS machines, and budget workstation builds.
  • Suitable Applications
  • Office PCs
  • Business Desktops
  • Educational Computer Labs
  • Entry-Level Workstations
  • POS Systems
  • Home Computing
  • Budget Gaming Builds (with dedicated GPU)
Technical Specs
Dimensions202 × 236 mm
WeightApprox. 1.0 – 1.3 kg
Technical specifications
  • CPU SocketLGA1200
  • ChipsetIntel H510 / H470-based variant (board-specific revision)
  • Supported ProcessorsIntel 10th Gen Core i9/i7/i5/i3, Pentium Gold, Celeron
  • Form FactorMicro-ATX
  • Memory TypeDDR4
  • Memory Slots2 × DDR4 DIMM
  • Maximum Memory Capacity64GB
  • Memory Speed2133 / 2400 / 2666 / 2933 MHz
  • Memory ArchitectureDual Channel
  • BIOSUEFI BIOS
  • Operating SystemWindows 10 64-bit / Windows 11 64-bit
  • XMP SupportYes
  • ECC SupportNon-ECC Unbuffered
  • Memory ProfilesIntel XMP Supported
  • PCIe x16 Slot1 × PCIe 3.0 x16
  • PCIe x1 Slot1 × PCIe 3.0 x1
  • M.2 Slot1 × M.2 PCIe 3.0 x4 / SATA
  • RGB Header1 × RGB LED Header
  • TPM HeaderTPM 2.0 Support
  • M.2 NVMe Slot1 × M.2 (2242/2260/2280)
  • SATA Ports4 × SATA 6Gb/s
  • RAID SupportSupported
  • LANRealtek 8111H Gigabit LAN
  • Audio CodecRealtek ALC897
  • Audio Channels7.1 HD Audio
  • HDMI1
  • VGA (D-Sub)1
  • USB 3.2 Gen1 Type-A2
  • USB 2.04
  • RJ-45 LAN1
  • Audio Jacks3
  • PS/2 Combo Port1
  • CPU Fan Header1
  • System Fan Header2
  • USB 3.2 Gen1 Header1
  • USB 2.0 Headers2
  • Front Audio Header1
  • TPM Header1
  • RGB Header1
Supply, Shipping & Delivery
Production lead time (days)8
Supply ability per month100
Compliance & Customization
Warranty
  • 2 Years
OEM / ODM availableYes
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
