ASRock B760M-HDV/M.2 D4 Motherboard | Intel B760 LGA1700 DDR4 Micro-ATX Motherboard
OEM

ASRock B760M-HDV/M.2 D4 Motherboard | Intel B760 LGA1700 DDR4 Micro-ATX Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 10,499.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

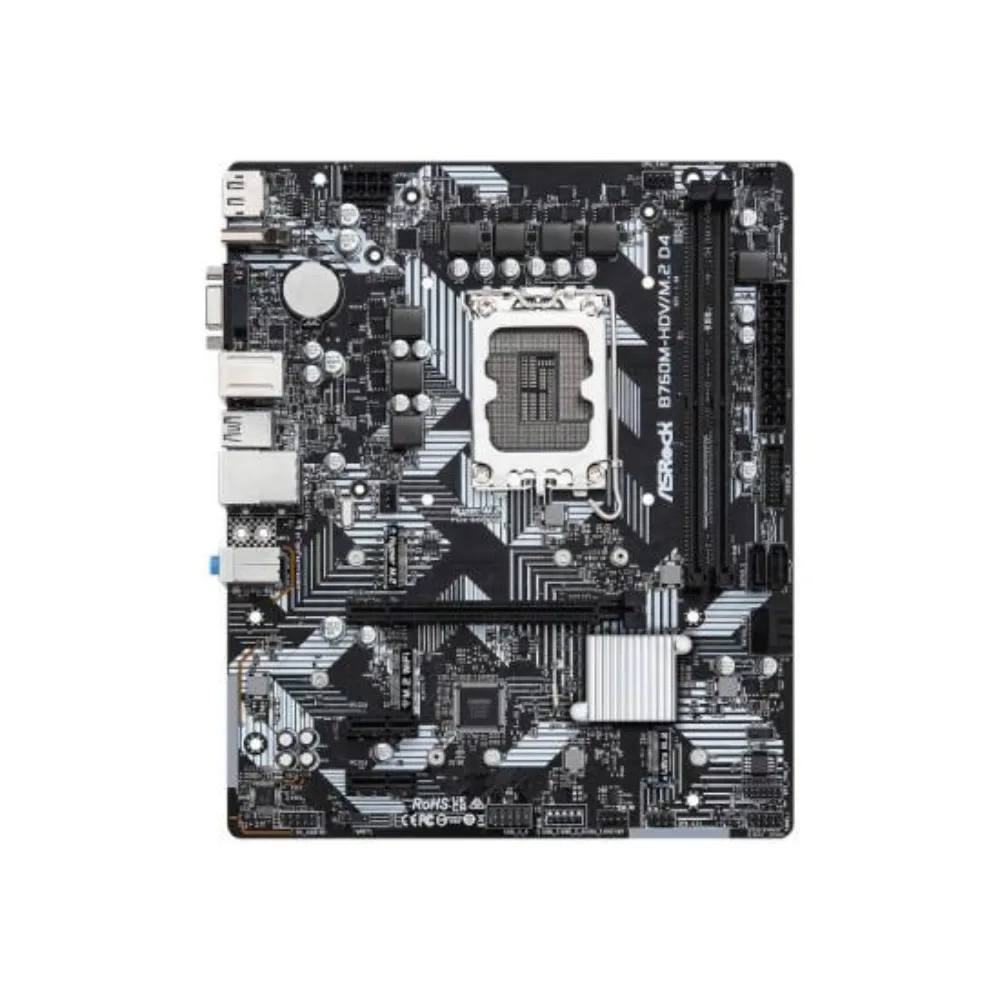

The ASRock B760M-HDV/M.2 D4 is a compact Micro-ATX motherboard built on the Intel B760 chipset for Intel LGA1700 processors. Supporting Intel 12th, 13th, and 14th Generation CPUs, it offers up to 64GB DDR4 memory, PCIe 4.0 graphics support, dual M.2 NVMe SSD slots, USB 3.2 Gen1 Type-C connectivity, Gigabit LAN, and multiple display outputs including HDMI 2.1, DisplayPort 1.4, and VGA. With an optional M.2 Key-E slot for Wi-Fi upgrades and support for high-speed DDR4 memory overclocking, it is an excellent choice for office PCs, educational systems, home desktops, and budget gaming builds.

Full product details

Overview
Product nameASRock B760M-HDV/M.2 D4 Motherboard | Intel B760 LGA1700 DDR4 Micro-ATX Motherboard
CategoryMotherboards
BrandASRock
Model numberB760M-HDV/M.2 D4
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 10,499.00
Sample availableNo
Sample priceINR 10,499.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions226 mm × 201 mm
WeightApprox. 1.0 – 1.3 kg
Technical specifications
  • ChipsetIntel B760
  • CPU SocketLGA1700
  • Form FactorMicro-ATX
  • Supported ProcessorsIntel Core 14th, 13th & 12th Gen
  • Memory TypeDDR4
  • Memory Slots2 × DDR4 DIMM
  • Maximum Memory Capacity64GB
  • Memory SpeedUp to DDR4 5333+ MHz (OC)
  • Memory ArchitectureDual Channel
  • BIOS128Mb AMI UEFI BIOS
  • LANRealtek Gigabit LAN
  • AudioRealtek ALC887/ALC897 7.1 HD Audio
  • PCIe x16 Slot1 × PCIe 4.0 x16
  • PCIe x1 Slots2 × PCIe 3.0 x1
  • M.2 NVMe Slots2 × M.2 (1 Gen4 x4 + 1 Gen3 x4/SATA)
  • M.2 Key-E Slot1 (For Optional Wi-Fi Module)
  • SATA Ports4 × SATA 6Gb/s
  • RAID SupportRAID 0, 1, 5, 10
  • USB Type-C1 × USB 3.2 Gen1 Type-C (Rear)

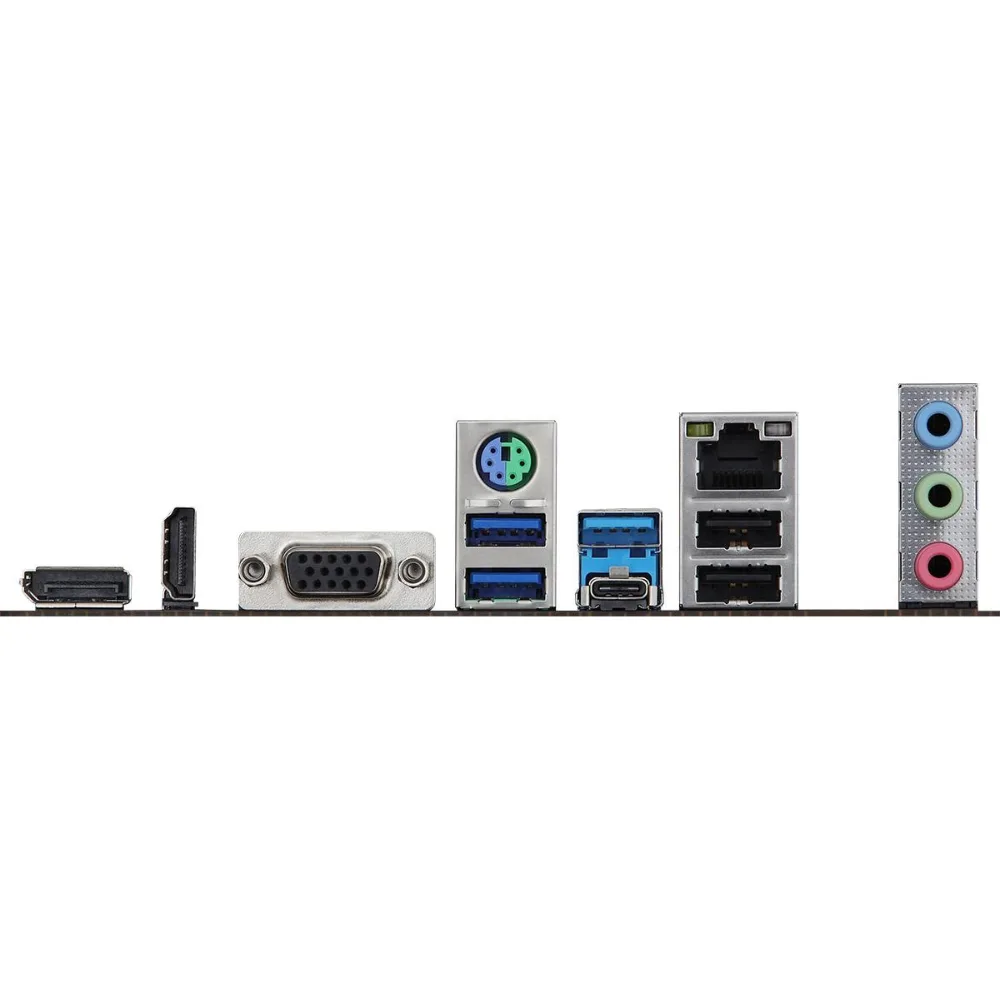

  • HDMI 2.1 1 DisplayPort 1.41
  • VGA (D-Sub)1
  • Maximum HDMI Resolution4K @ 60Hz
  • Maximum DisplayPort Resolution8K @ 60Hz / 5K @ 120Hz
  • USB 3.2 Gen1 Type-C1
  • USB 3.2 Gen1 Type-A3
  • USB 2.0 2 RJ-45 LAN1
  • Audio Jacks3
Supply, Shipping & Delivery
Production lead time (days)5
Supply ability per month1000
Compliance & Customization
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
