MSI B560M PRO-E Intel B560 LGA1200 Micro-ATX DDR4 Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 8,129.00 Starting price (MOQ 1)

Min order: 1
Supports exchange: Yes

Support

List your business & products here. Become a supplier.

Description

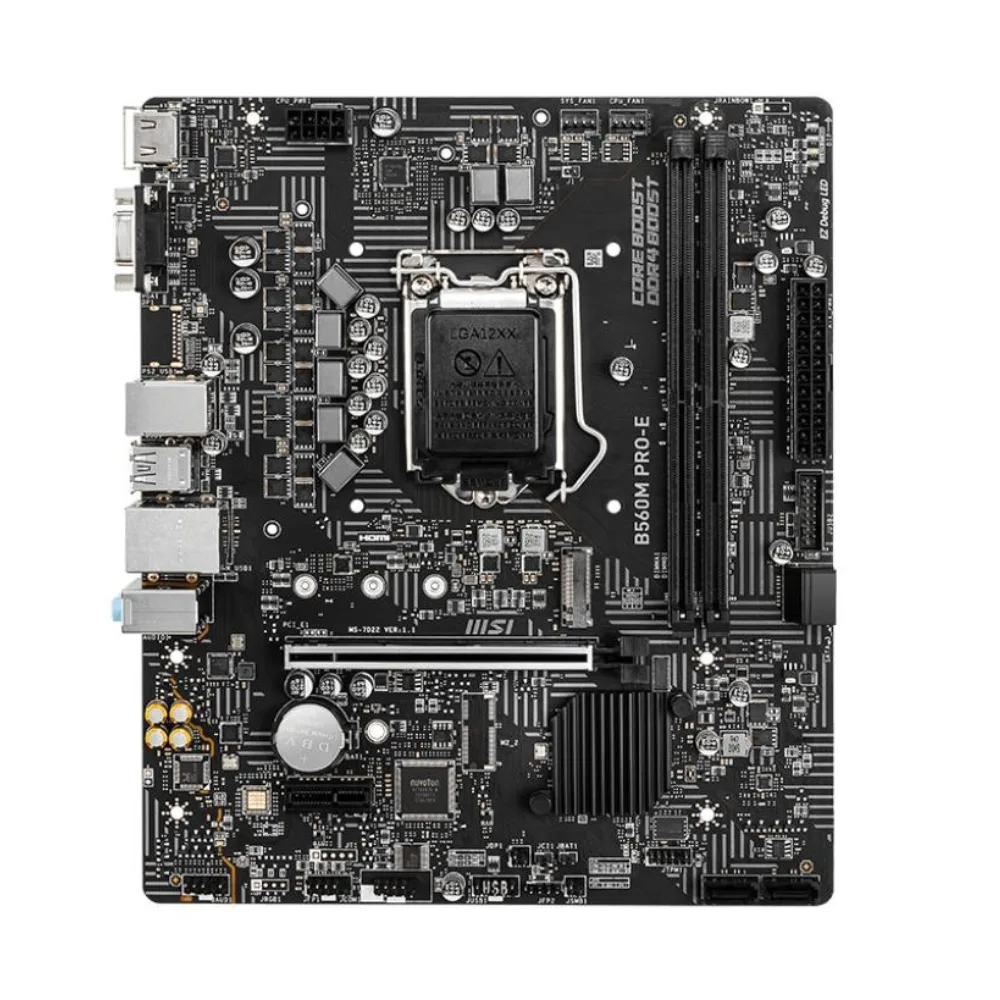

The MSI B560M PRO-E is a dependable Micro-ATX motherboard built for Intel 10th and 11th Generation processors. Featuring the Intel B560 chipset, DDR4 memory support up to 64GB, PCIe 4.0 readiness, M.2 NVMe SSD compatibility, Intel Gigabit LAN, and high-definition audio, it provides an excellent foundation for office systems, educational PCs, business desktops, and entry-level gaming builds.

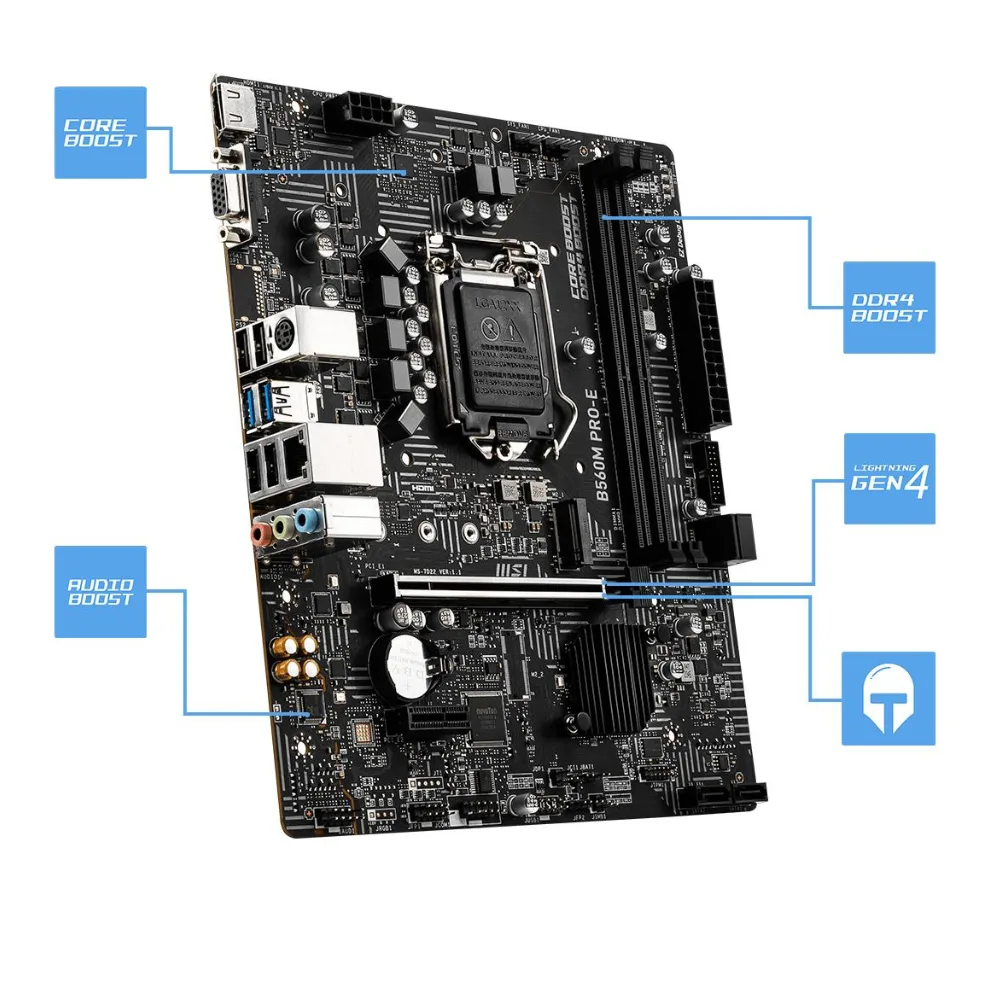

Product Highlights
Intel B560 Express Chipset
Supports Intel 10th & 11th Generation LGA1200 Processors
2 DDR4 DIMM Slots Supporting Up to 64GB RAM
DDR4 Memory Overclocking Up to 4800MHz+ (OC)
PCIe 4.0 Support with 11th Gen Intel CPUs
1 x M.2 NVMe/SATA SSD Slot
4 x SATA III 6Gb/s Ports
Intel I219-V Gigabit LAN Controller
7.1 Channel HD Audio
Compact Micro-ATX Form Factor

Full product details

Overview

Product name	MSI B560M PRO-E Intel B560 LGA1200 Micro-ATX DDR4 Motherboard
Category	Motherboards
Brand	MSI
Model number	B560M PRO-E
Enquiry only	No
Supports exchange	Yes

Pricing & MOQ

Base price	INR 8,129.00
Sample available	No
Sample price	INR 8,129.00
Min order quantity (MOQ)	1
Max order quantity	100

Technical Specs

Dimensions	23.6 × 20.2 cm
Weight	Approx. 650–850 g

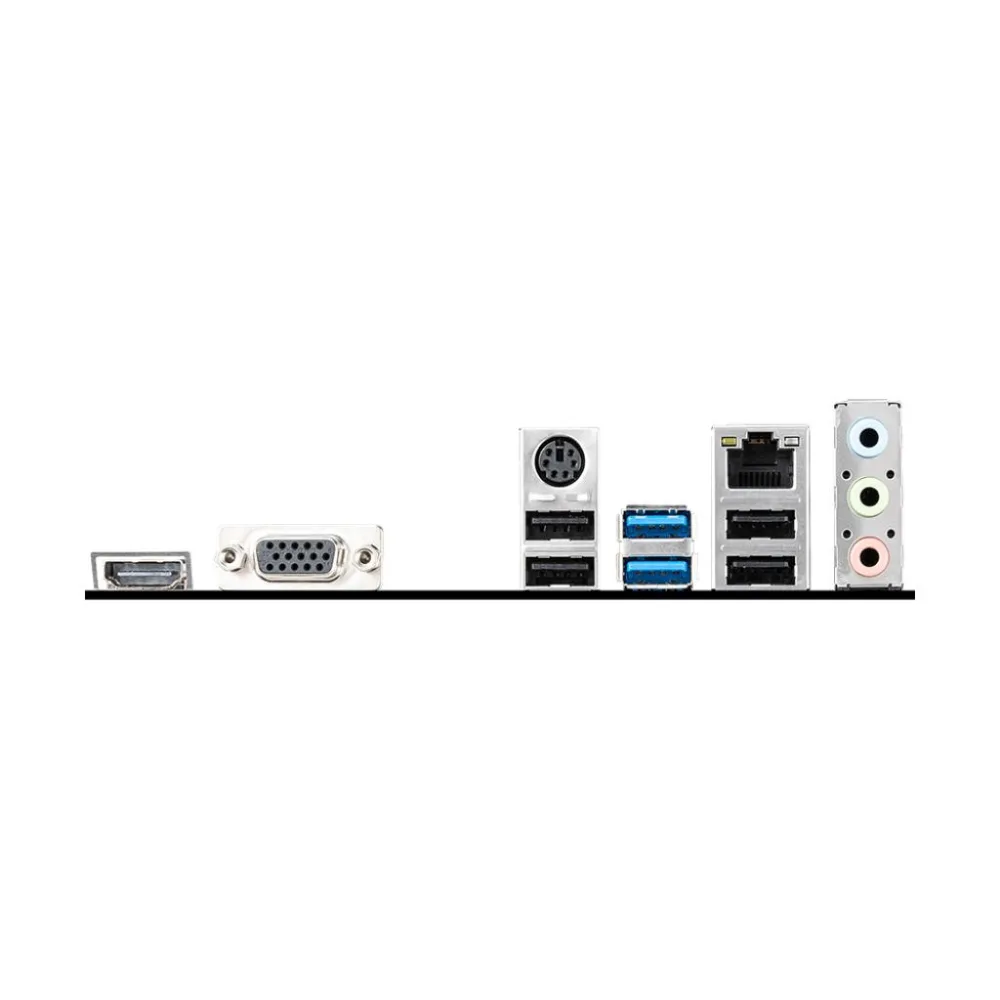

Technical specifications ChipsetIntel B560 Express CPU SocketLGA 1200 Form FactorMicro-ATX Memory TypeDDR4 Memory Slots2 x DDR4 DIMM Maximum Memory Capacity64GB BIOS TypeUEFI AMI BIOS PlatformIntel 10th & 11th Gen Processors Memory Slots2 x DDR4 DIMM Maximum Capacity64GB Memory ArchitectureDual Channel XMP SupportYes Standard Speed SupportDDR4-2133 to DDR4-3200 Maximum OC SpeedDDR4-4800+ MHz PCIe x16 Slot1 x PCIe x16 PCIe VersionPCIe 4.0 (11th Gen CPU) / PCIe 3.0 (10th Gen CPU) PCIe x1 Slot1 x PCIe 3.0 x1 Multi-GPU SupportNo M.2 Slots1 x M.2 Key-M M.2 SupportPCIe 3.0 x4 NVMe & SATA SATA Ports4 x SATA 6Gb/s SSD Length Support2242 / 2260 / 2280 HDMI Port1 VGA Port1 Maximum HDMI Resolution4K @ 60Hz Integrated Graphics SupportYes LAN ControllerIntel I219-V Ethernet SpeedGigabit LAN (10/100/1000 Mbps) Wi-FiNo BluetoothNo Rear USB 3.2 Gen12 x Type-A Front USB 3.2 Gen12 Ports via Header Rear USB 2.04 Ports Front USB 2.02 Ports via Header 24-Pin ATX Power1 8-Pin CPU Power1 SATA Connectors4 CPU Fan Header1 System Fan Header1 Front USB 3.2 Header1 Front USB 2.0 Header1 Front Audio Header1 TPM Header1 Serial Port Header1 PS/2 Combo Port1 HDMI1 VGA1 USB 3.2 Gen1 Type-A2 USB 2.04 RJ-45 LAN1 Audio Jacks3
