ASRock H810M-X WiFi DDR5 Motherboard | Intel H810 | LGA1851 | WiFi & Bluetooth
OEM

ASRock H810M-X WiFi DDR5 Motherboard | Intel H810 | LGA1851 | WiFi & Bluetooth

Supplier: Verified OEM partner New

Category: Motherboards

INR 17,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

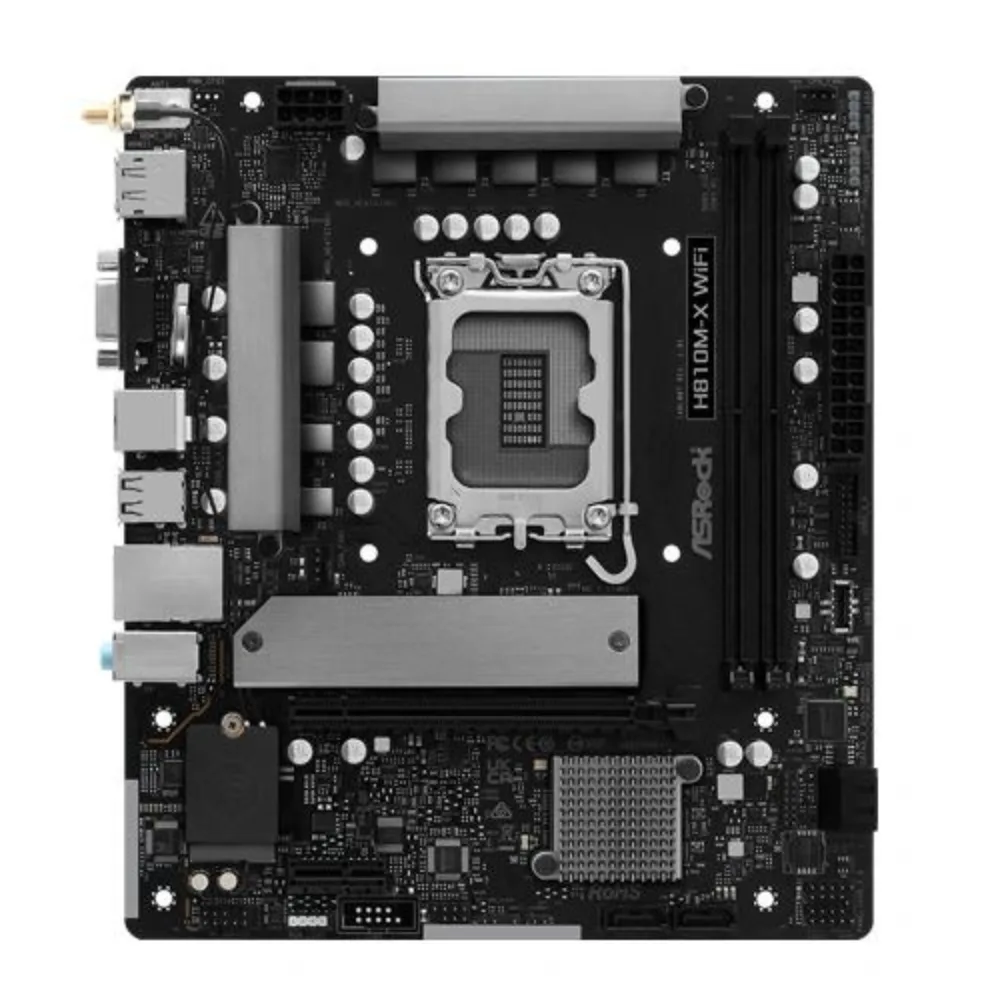

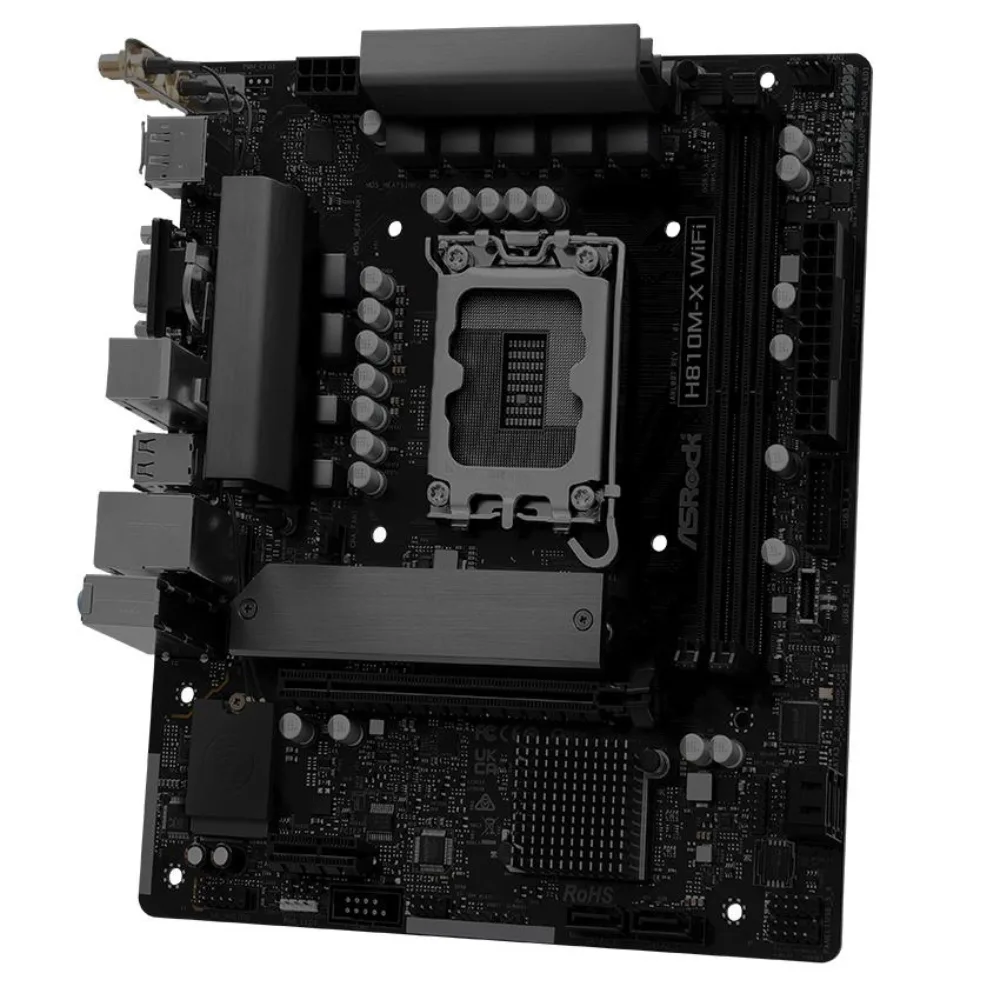

The ASRock H810M-X WiFi DDR5 Motherboard is a feature-rich Micro-ATX motherboard designed for Intel Core Ultra Series 2 processors using the LGA1851 socket. Powered by the Intel H810 chipset, it supports up to 128GB of DDR5 memory at speeds up to 6400MHz, providing excellent performance for modern computing needs. Equipped with PCIe 4.0 expansion, Hyper M.2 Gen4 NVMe storage support, 2.5Gb Ethernet, built-in Dual-Band WiFi, Bluetooth 5.0, and multiple display outputs including HDMI 2.1, DisplayPort 1.4, and VGA, it is an ideal platform for office systems, business desktops, AI-ready PCs, home computers, and productivity-focused builds.

Full product details

Overview
Product nameASRock H810M-X WiFi DDR5 Motherboard | Intel H810 | LGA1851 | WiFi & Bluetooth
CategoryMotherboards
BrandASRock
Model numberH810M-X WiFi
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 17,000.00
Sample availableNo
Sample priceINR 17,000.00
Min order quantity (MOQ)1
Max order quantity10
Technical Specs
Dimensions244 mm × 201 mm
WeightApprox. 1.2 – 1.5 kg
Technical specifications
  • ChipsetIntel H810
  • CPU SocketLGA1851
  • Supported ProcessorsIntel Core Ultra Series 2 Processors
  • Form FactorMicro-ATX
  • Memory TypeDDR5
  • Memory Slots2 × DDR5 DIMM
  • Maximum Memory Capacity128GB
  • Memory SpeedUp to DDR5 6400 MHz
  • Memory ArchitectureDual Channel
  • BIOS256Mb AMI UEFI BIOS
  • AudioRealtek ALC897 7.1 HD Audio
  • LANDragon RTL8125BG 2.5GbE LAN
  • Wi-Fi StandardDual-Band 802.11ac Wi-Fi
  • Frequency Bands2.4GHz & 5GHz
  • BluetoothBluetooth 5.0
  • Wireless SpeedUp to 433 Mbps

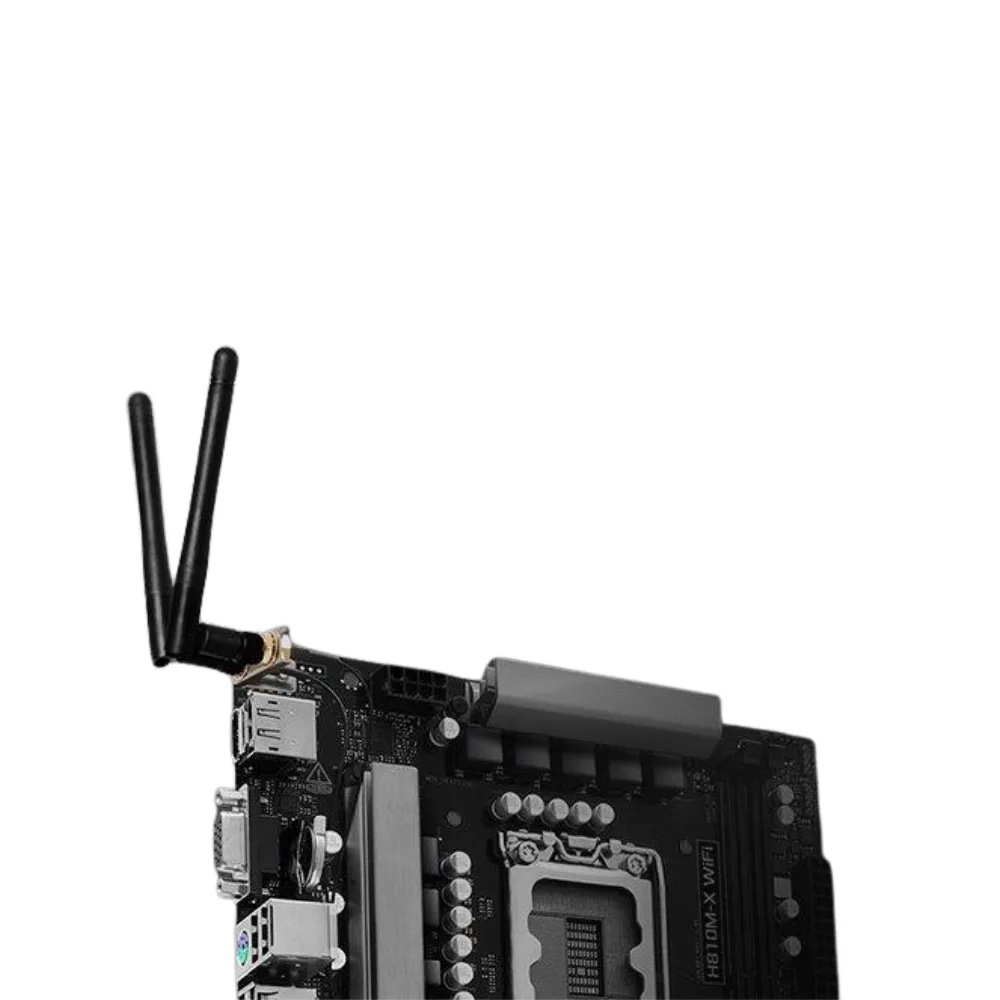

  • AntennasExternal Wi-Fi Antenna Support
  • PCIe x16 Slot1 × PCIe 4.0 x16
  • PCIe x1 Slot1 × PCIe 4.0 x1
  • M.2 NVMe Slot1 × Hyper M.2 PCIe Gen4 x4
  • SATA Ports4 × SATA III 6Gb/s
  • M.2 Key-E SlotIntegrated Wi-Fi/BT Module Support
  • NVMe Boot SupportYes
  • HDMI 2.11
  • DisplayPort 1.41
  • VGA (D-Sub)1
  • HDMI ResolutionUp to 4K @ 120Hz
  • DisplayPort ResolutionUp to 8K @ 60Hz / 5K @ 120Hz
  • USB 3.2 Gen1 Type-A2
  • USB 2.04
  • RJ-45 2.5GbE LAN1
  • Audio Jacks3
  • HDMI1
  • DisplayPort1
  • VGA1
Supply, Shipping & Delivery
Production lead time (days)5
Supply ability per month1000
Compliance & Customization
Warranty
  • 2 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
