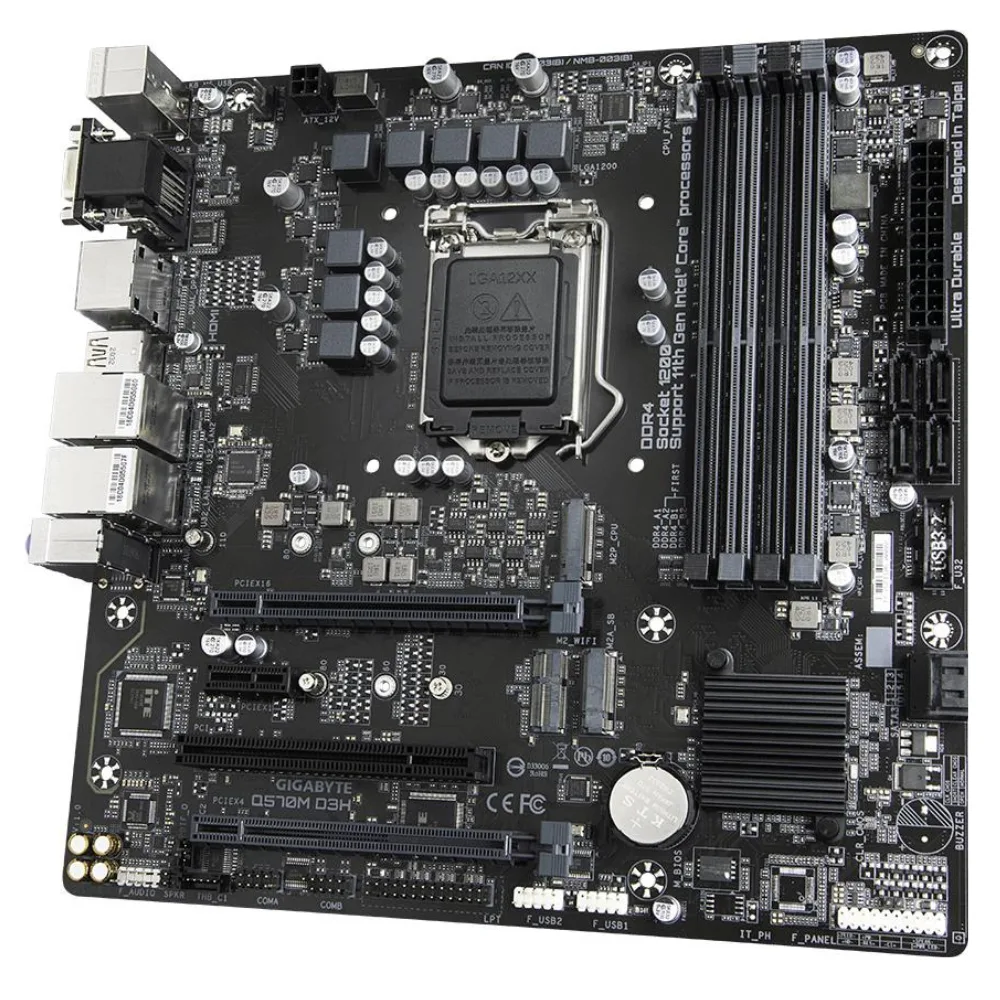

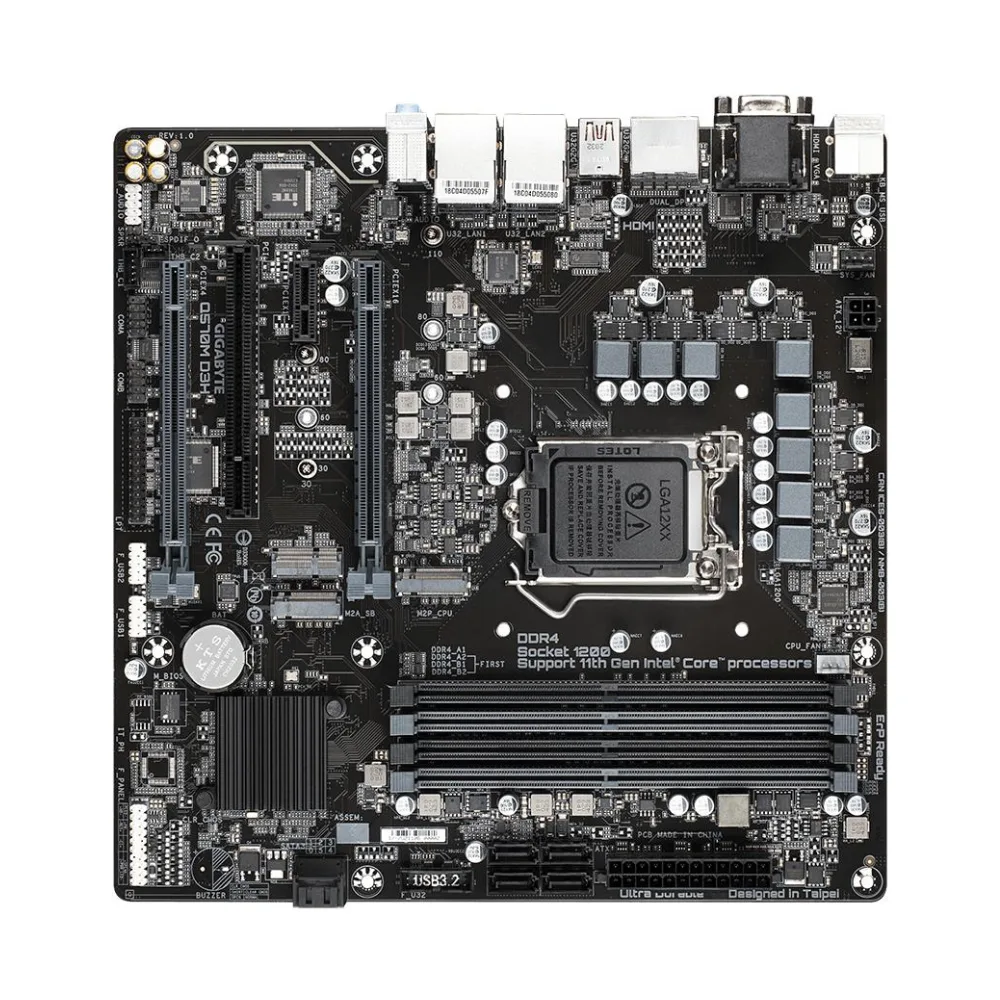

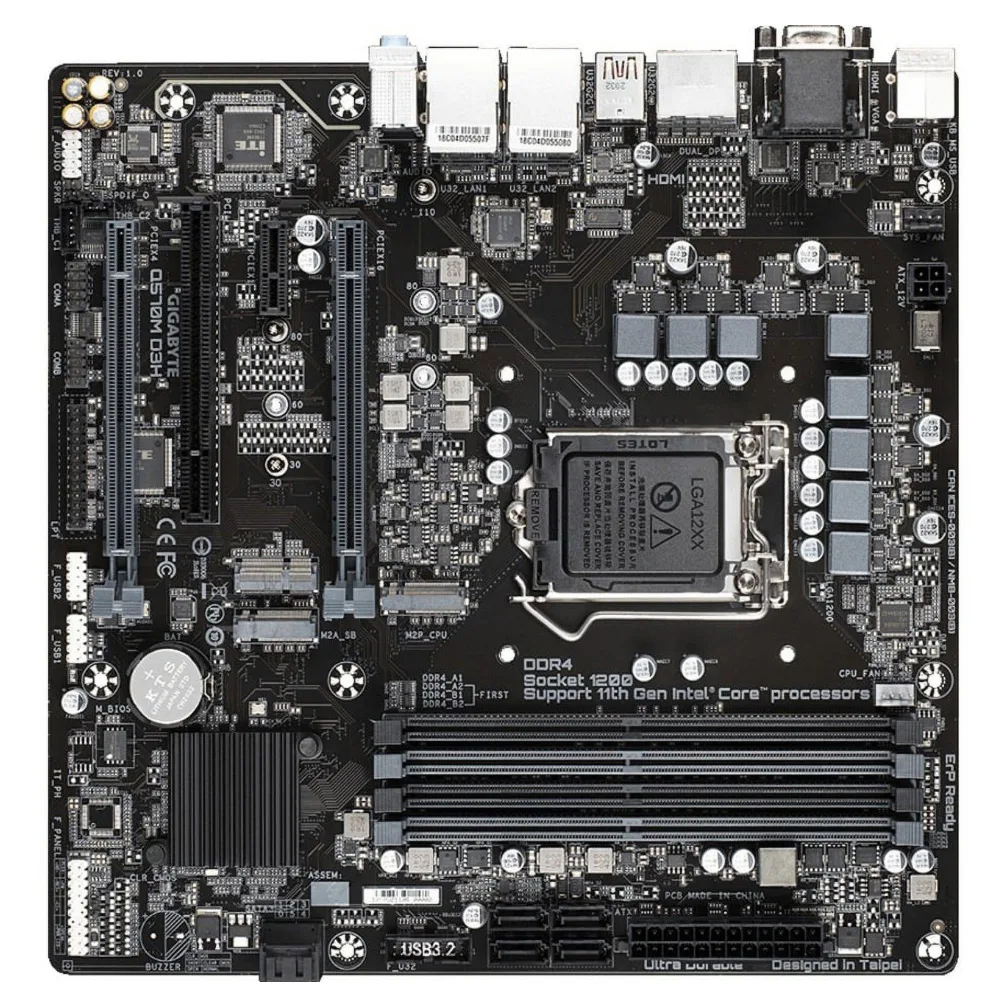

Gigabyte Q570M D3H Motherboard | Intel Q570 LGA1200 Micro-ATX DDR4 Business Motherboard
OEM

Gigabyte Q570M D3H Motherboard | Intel Q570 LGA1200 Micro-ATX DDR4 Business Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 13,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

Gigabyte Q570M D3H motherboard with Intel Q570 chipset, LGA1200 socket, 4 DDR4 DIMM slots supporting up to 128GB RAM, dual M.2 NVMe storage, PCIe 4.0 support, Intel Gigabit LAN, and TPM 2.0 security for business and enterprise PCs.
The Gigabyte Q570M D3H is a business-class Micro-ATX motherboard based on the Intel Q570 Express Chipset. It supports 10th and 11th Generation Intel Core processors and is designed for commercial desktops, enterprise PCs, educational systems, and professional office environments.

Full product details

Overview
Product nameGigabyte Q570M D3H Motherboard | Intel Q570 LGA1200 Micro-ATX DDR4 Business Motherboard
CategoryMotherboards
BrandGigabyte
Model numberQ570M D3H
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 13,000.00
Sample availableNo
Sample priceINR 13,000.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions244 × 244 mm
WeightApprox. 1.3 – 1.8 kg
Technical specifications
  • ChipsetIntel Q570 Express
  • CPU SocketLGA1200
  • Supported ProcessorsIntel 10th Gen & 11th Gen Core, Pentium Gold, Celeron
  • Form FactorMicro-ATX
  • Memory TypeDDR4
  • Memory Slots4 × DDR4 DIMM
  • Maximum Memory Capacity128GB
  • Memory SpeedDDR4 2133 / 2400 / 2666 / 2933 / 3200 MHz*
  • Memory ArchitectureDual Channel
  • BIOSUEFI AMI BIOS
  • ECC SupportNo
  • XMP SupportYes
  • Memory ArchitectureDual Channel
  • PCIe x16 Slot1 × PCIe 4.0/3.0 x16 (CPU dependent)
  • PCIe x4 Slot1 × PCIe 3.0 x4
  • PCIe x1 Slots2 × PCIe 3.0 x1
  • Multi-GPU SupportNo
  • Graphics Card SupportYes
  • M.2 Slots2 × M.2 NVMe
  • SATA III Ports6 × SATA 6Gb/s
  • RAID SupportRAID 0, 1, 5, 10
  • NVMe SupportYes
  • Intel Optane SupportYes
  • LAN ControllerIntel Gigabit Ethernet
  • LAN Speed10/100/1000 Mbps
  • Audio CodecRealtek 7.1 HD Audio
  • TPM SupportTPM 2.0
  • HDMI1
  • DisplayPort2
  • Triple Display SupportYes
  • Maximum ResolutionUp to 4K
  • USB 3.2 Gen2 Type-A2
  • USB 3.2 Gen14
  • USB 2.02
  • HDMI1
  • DisplayPort2
  • RJ-45 LAN1
  • Audio Jacks3
  • PS/2 Combo Port1
  • DDR4 DIMM Slots4
  • M.2 Connectors2
  • SATA Connectors6
  • USB 3.2 Header1
  • USB 2.0 Headers2
  • TPM Header1
  • Front Audio Header1
  • Fan HeadersMultiple
Supply, Shipping & Delivery
Production lead time (days)7
Supply ability per month100
Compliance & Customization
Warranty
  • 3 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
