MSI H510M PRO Motherboard | Intel H510 LGA1200 Micro-ATX DDR4 Desktop Board
OEM

MSI H510M PRO Motherboard | Intel H510 LGA1200 Micro-ATX DDR4 Desktop Board

Supplier: Verified OEM partner New

Category: Motherboards

INR 5,000.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

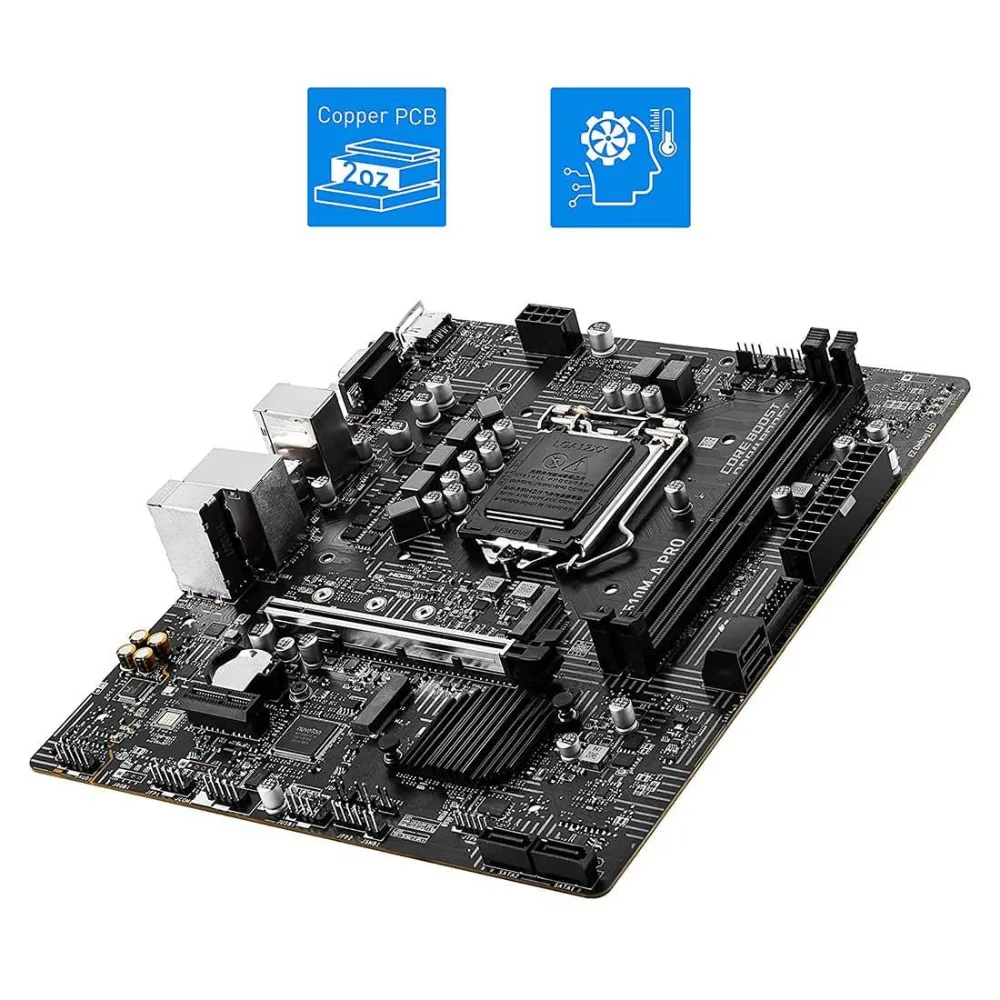

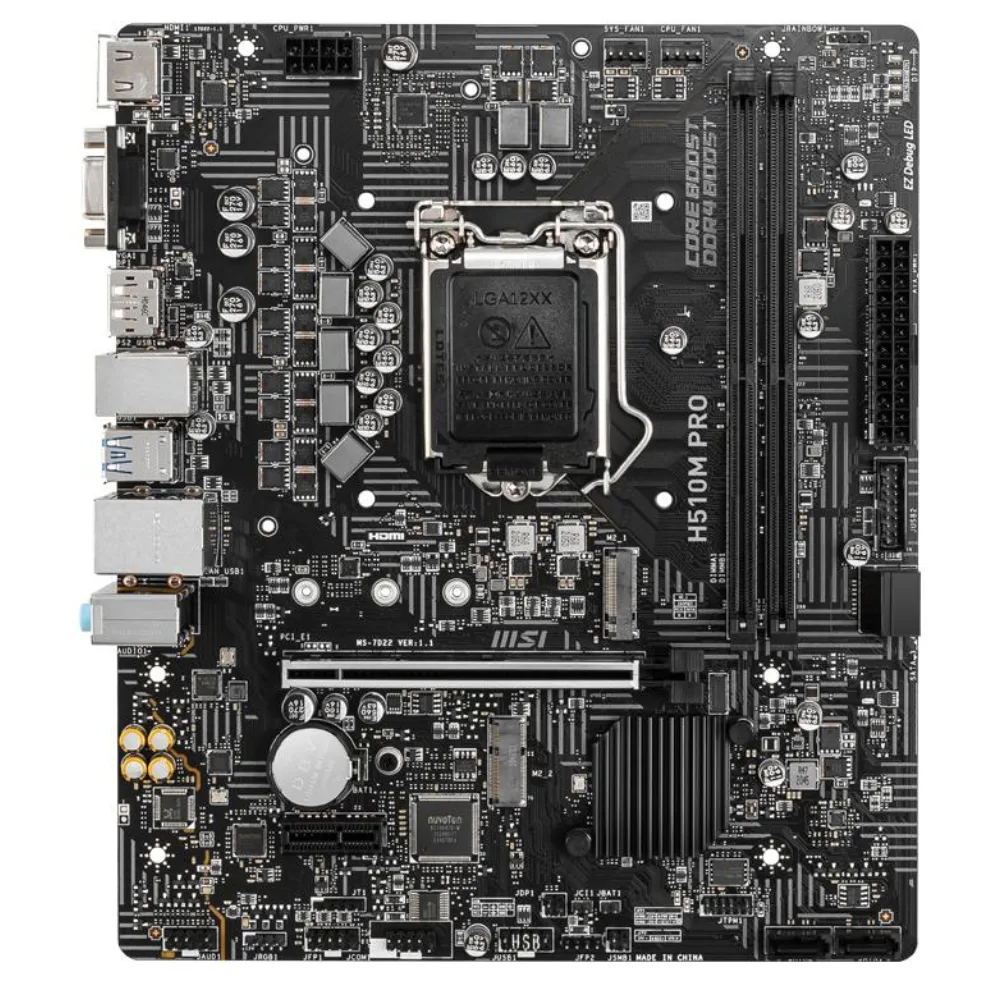

MSI H510M PRO motherboard with Intel H510 chipset, LGA1200 socket, support for 10th & 11th Gen Intel processors, up to 64GB DDR4 RAM, PCIe 4.0 support, Turbo M.2 NVMe, and Intel Gigabit LAN for office, business, and budget PC builds.

Full product details

Overview
Product nameMSI H510M PRO Motherboard | Intel H510 LGA1200 Micro-ATX DDR4 Desktop Board
CategoryMotherboards
BrandMSI
Model numberH510M PRO
Enquiry onlyNo
Supports exchangeYes
Pricing & MOQ
Base priceINR 5,000.00
Sample availableNo
Sample priceINR 5,000.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions236 × 202 mm
WeightApprox. 0.74 kg (1.625 lb)
Technical specifications
  • ChipsetIntel H510 Express
  • CPU SocketLGA1200
  • Supported ProcessorsIntel 11th Gen & 10th Gen Core i9/i7/i5/i3, Pentium Gold, Celeron
  • Form FactorMicro-ATX
  • Memory TypeDDR4
  • Memory Slots2 × DDR4 DIMM
  • Maximum Memory Capacity64GB
  • Memory ArchitectureDual Channel
  • Memory SpeedDDR4 2133 / 2400 / 2666 / 2933 / 3200 MHz
  • Audio CodecRealtek ALC897 7.1 HD Audio
  • LANIntel I219V Gigabit LAN
  • XMP SupportYes
  • ECC SupportNon-ECC, Unbuffered
  • Maximum Memory SpeedUp to 3200 MHz (11th Gen CPU)
  • PCIe x16 Slot1 × PCIe 4.0 x16 (11th Gen CPU)
  • PCIe x1 Slot1 × PCIe 3.0 x1
  • M.2 SSD Slot1 × M.2 Key-M (2242/2260/2280)
  • M.2 Wi-Fi Slot1 × M.2 Key-E
  • SATA Ports4 × SATA III 6Gb/s
  • NVMe SupportYes
  • TPM HeaderYes

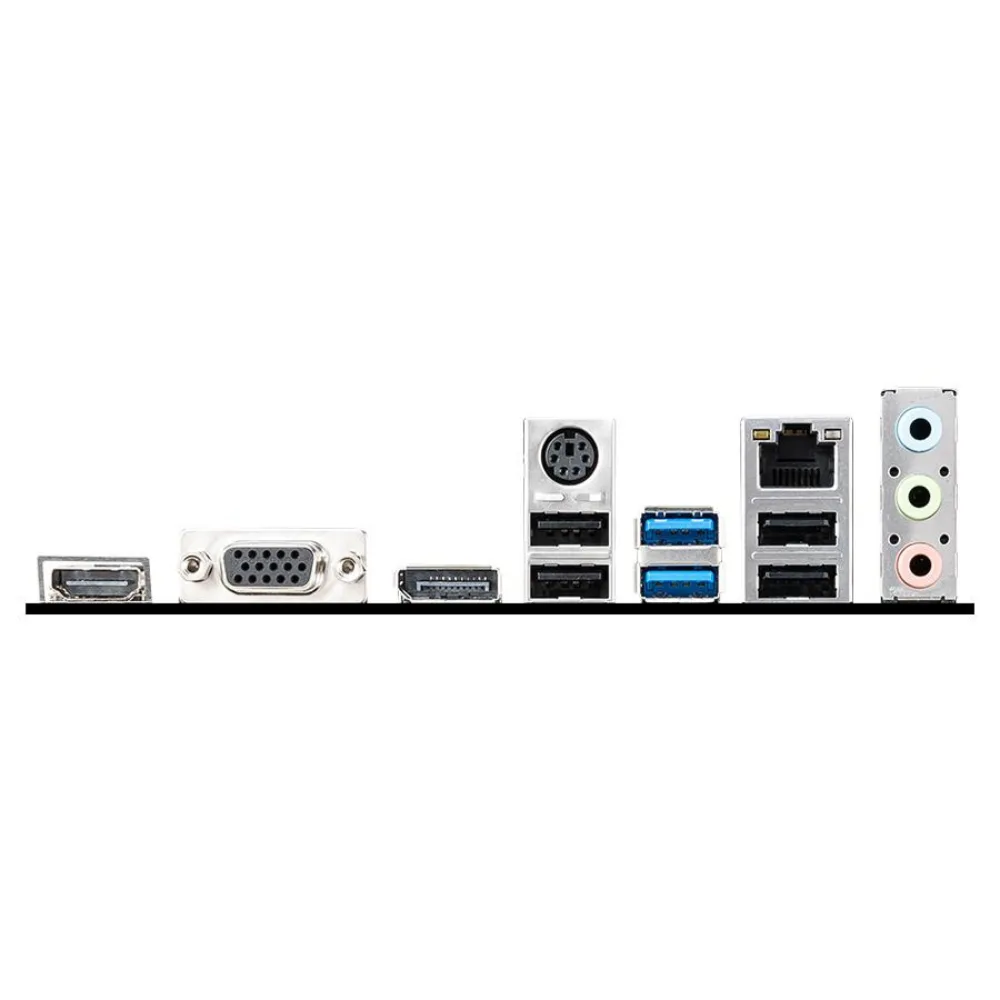

  • HDMI 2.0b1
  • DisplayPort 1.41
  • VGA (D-Sub)1
  • USB 3.2 Gen1 Type-A2
  • USB 2.04
  • RJ-45 LAN1
  • PS/2 Combo Port1
  • Audio Jacks3
  • 24-Pin ATX Power1
  • 8-Pin CPU Power1
  • SATA Connectors4
  • USB 3.2 Gen1 Header1
  • USB 2.0 Header1
  • CPU Fan Header1
  • System Fan Header1
  • TPM Header1
  • Serial Port Header1
  • Front Audio Header1
Supply, Shipping & Delivery
Production lead time (days)8
Supply ability per month100
Compliance & Customization
Warranty
  • 3 years
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
