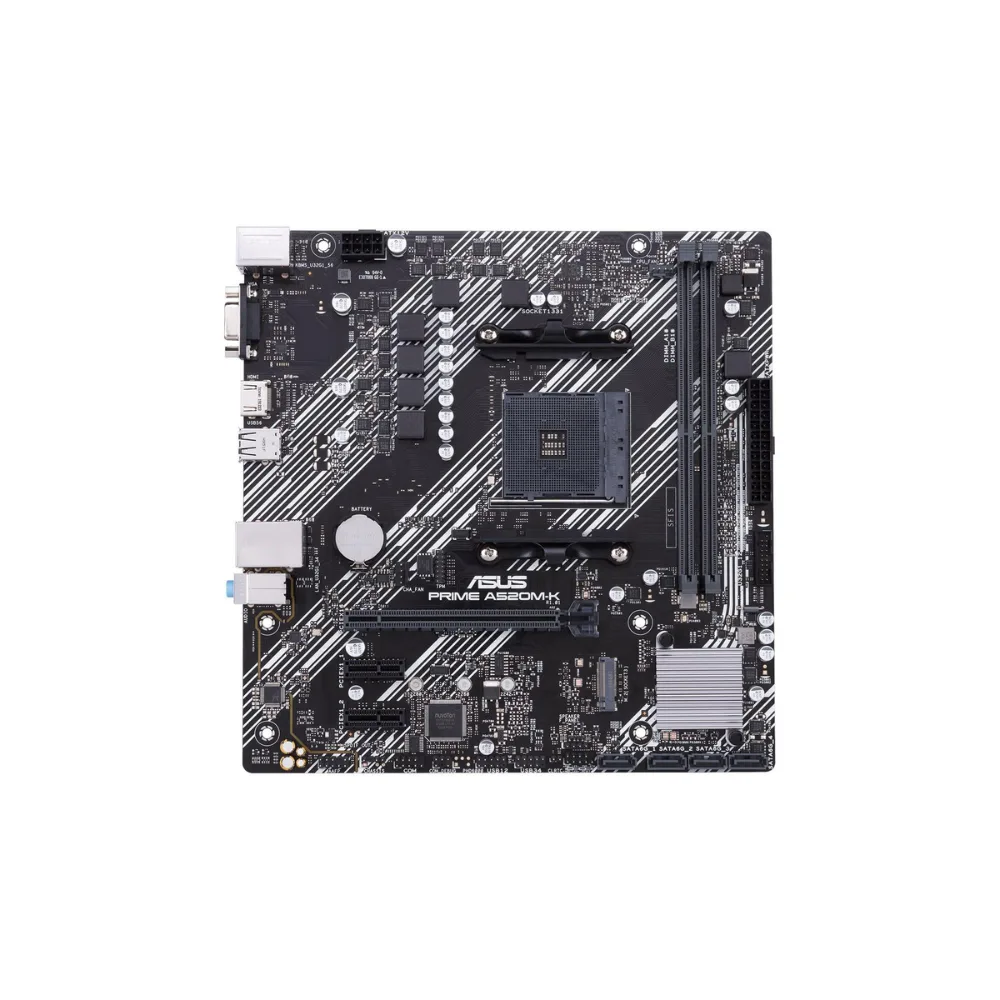

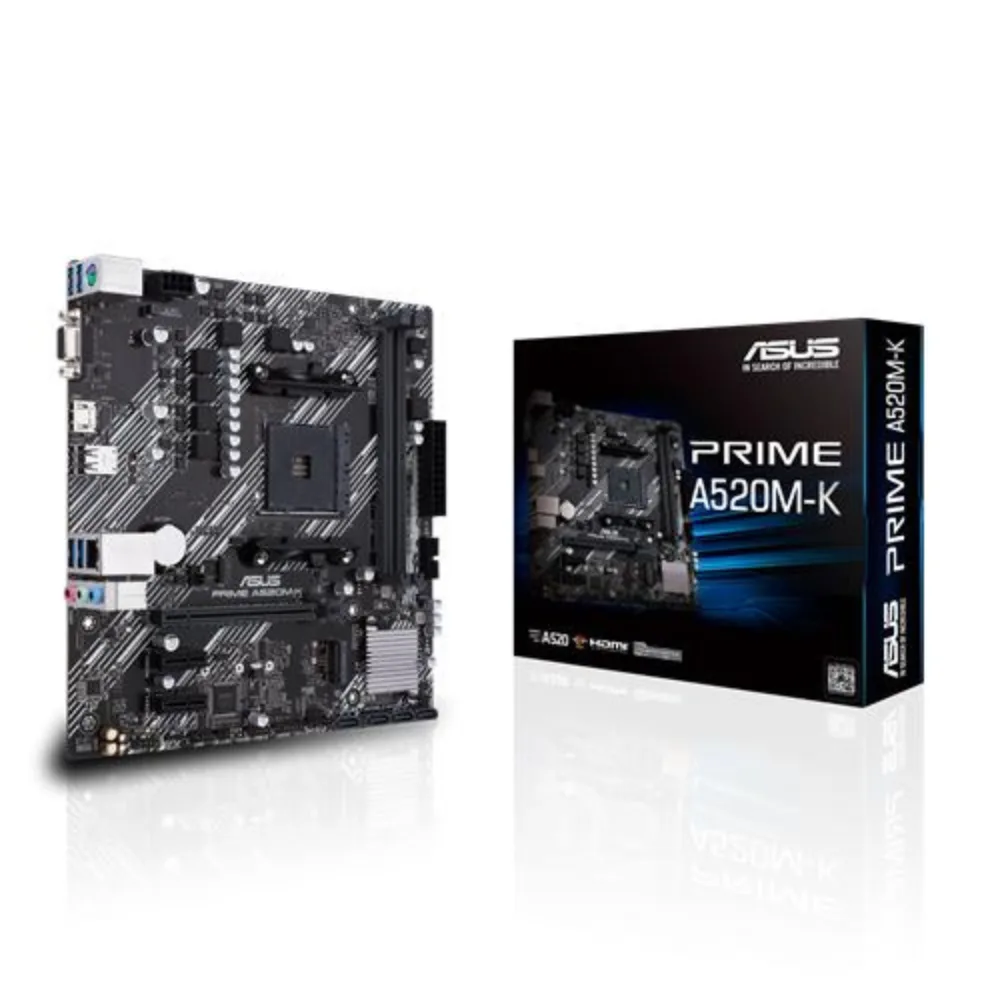

ASUS PRIME A520M-K AM4 Micro-ATX Motherboard for AMD Ryzen 5000 Series
Enquiry Only

ASUS PRIME A520M-K AM4 Micro-ATX Motherboard for AMD Ryzen 5000 Series

Supplier: Verified OEM partner New

Category: Motherboards

INR 5,130.00 Starting price (MOQ 1)
  • Min order: 1
  • Supports exchange: Yes
Support

List your business & products here. Become a supplier.

Description

The ASUS PRIME A520M-K is a reliable Micro-ATX motherboard built on the AMD A520 chipset and AM4 platform. Supporting AMD Ryzen 3000, 4000G, 5000, and 5000G series processors, it features dual-channel DDR4 memory up to 64GB, PCIe Gen3 M.2 NVMe SSD support, HDMI 2.1 and VGA outputs, Gigabit LAN, and ASUS-exclusive technologies such as 5X Protection III, DIGI+ VRM, Fan Xpert, and SafeSlot Core. Ideal for office PCs, home computing, education, and entry-level gaming systems.

Full product details

Overview
Product nameASUS PRIME A520M-K AM4 Micro-ATX Motherboard for AMD Ryzen 5000 Series
CategoryMotherboards
BrandASUS
Model numberPRIME A520M-K
Enquiry onlyYes
Supports exchangeYes
Pricing & MOQ
Base priceINR 5,130.00
Sample availableNo
Sample priceINR 5,130.00
Min order quantity (MOQ)1
Max order quantity100
Technical Specs
Dimensions226 x 221 mm
WeightApprox. 0.75 kg
Technical specifications
  • ChipsetAMD A520
  • CPU SocketAM4
  • Form FactorMicro-ATX
  • BIOS TypeUEFI AMI BIOS
  • Operating System SupportWindows 10 / Windows 11 (64-bit)
  • LANGigabit Ethernet
  • Memory TypeDDR4
  • Memory Slots2 x DDR4 DIMM Slots
  • Maximum Capacity64GB
  • Memory ArchitectureDual Channel
  • Memory Speed SupportUp to DDR4 5100 MHz (OC)
  • XMP SupportYes
  • ECC SupportECC & Non-ECC (CPU Dependent)
  • PCIe x16 Slot1 x PCIe 3.0 x16
  • PCIe x1 Slots2 x PCIe 3.0 x1
  • M.2 Slot1 x M.2 PCIe Gen3 x4 / SATA
  • M.2 Sizes Supported2242 / 2260 / 2280
  • SATA Ports4 x SATA III 6Gb/s
  • RAID SupportRAID 0, 1, 10 NVMe
  • SSD SupportYes
  • USB 3.2 Gen1 Type-A4
  • USB 2.0 Type-A2
  • HDMI 2.11
  • VGA (D-Sub)1
  • RJ-45 Gigabit LAN1
  • PS/2 Combo Port1
  • Audio Jacks3
  • LAN ControllerRealtek RTL8111H
  • Ethernet Speed10/100/1000 Mbps
  • Wi-FiNo
  • BluetoothNo
  • ASUS LANGuardYes
  • Audio CodecRealtek ALC887 / ALC897
  • Audio Channels7.1 Channel HD Audio
  • Audio ShieldingYes
  • Dedicated Audio PCB LayersYes
  • 24-Pin ATX Power1
  • 8-Pin CPU Power1
  • CPU Fan Header1
  • Chassis Fan Header1
  • USB 3.2 Gen1 Header1
  • USB 2.0 Headers2
  • Front Audio Header1
  • SATA Connectors4
  • TPM Header1
  • COM Header1
  • S/PDIF Header1
  • Form FactorMicro-ATX
Supply, Shipping & Delivery
Production lead time (days)4
Supply ability per month1000
Compliance & Customization
OEM / ODM availableNo
Custom logo availableNo
Custom packaging availableNo
Private label supportNo
