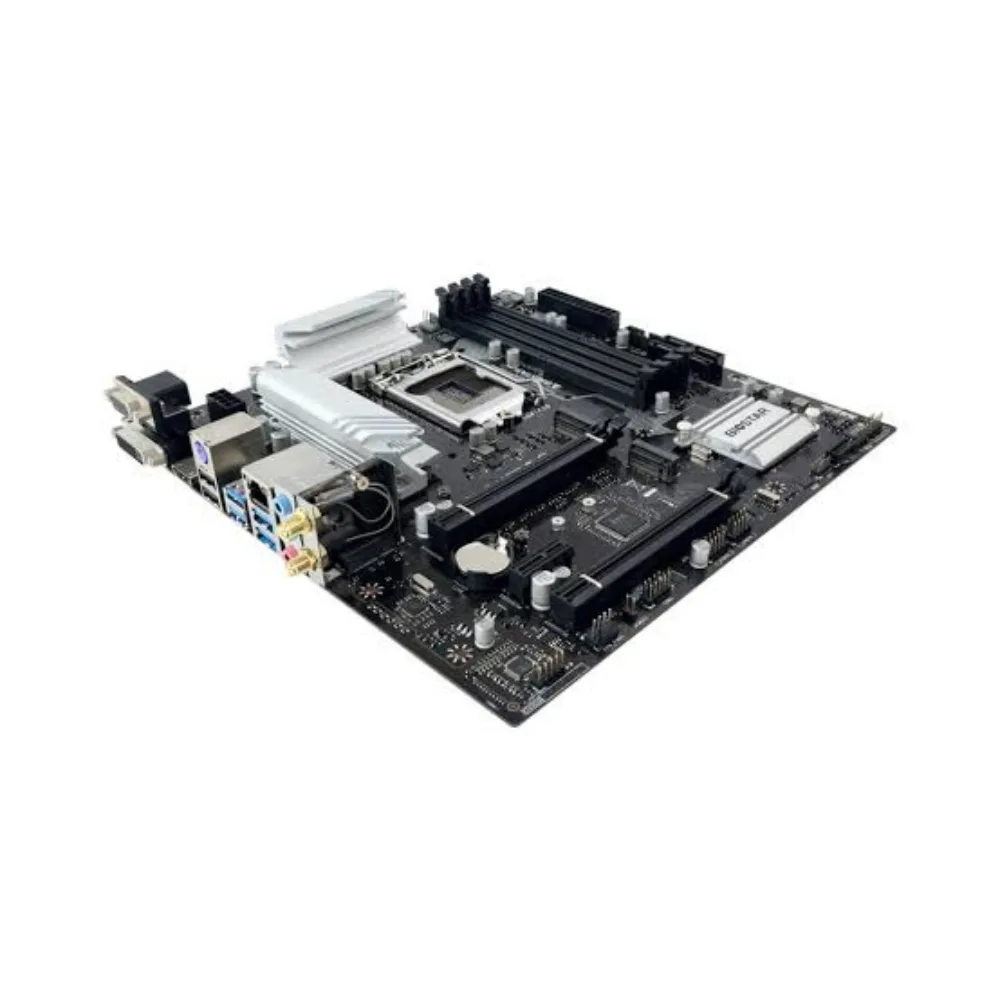

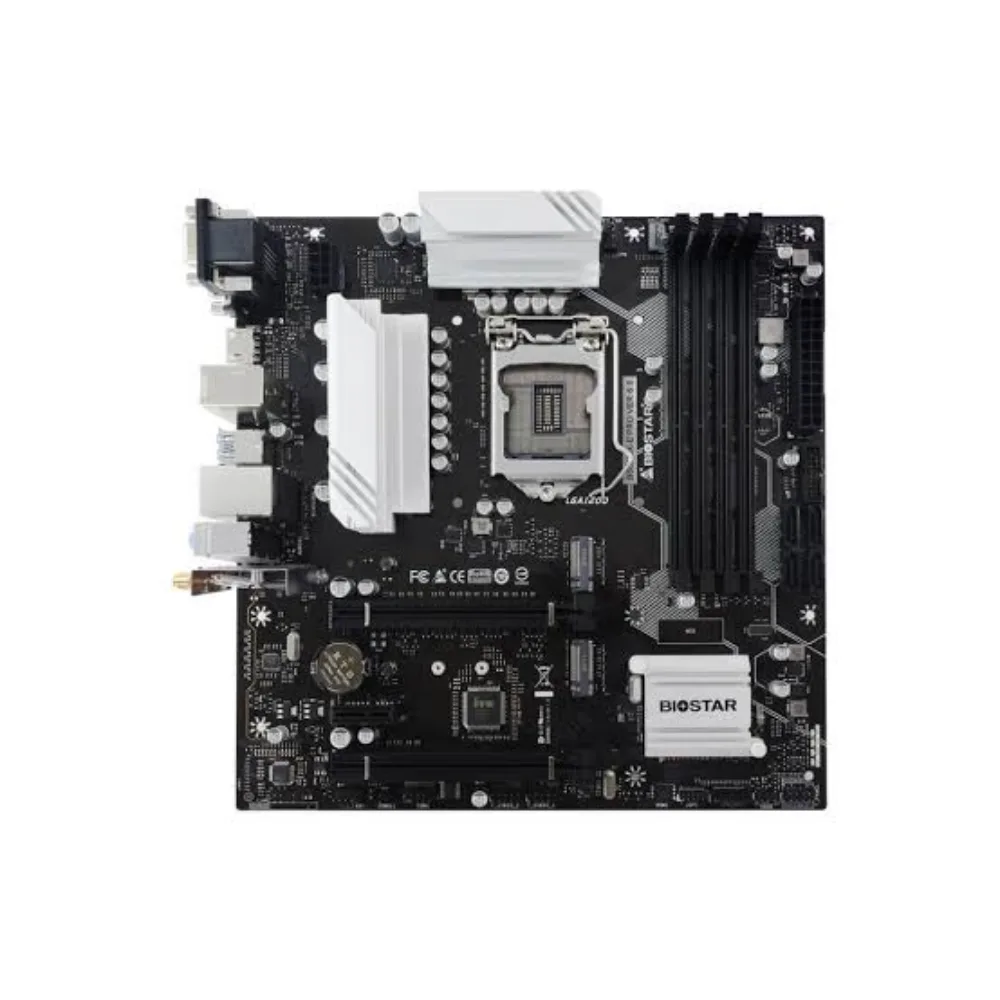

Biostar B560MX-E PRO Intel B560 LGA1200 Micro-ATX DDR4 Motherboard

Supplier: Verified OEM partner New

Category: Motherboards

INR 8,400.00 Starting price (MOQ 1)

Min order: 1
Supports exchange: Yes

Support

List your business & products here. Become a supplier.

Description

The Biostar B560MX-E PRO is a versatile Micro-ATX motherboard designed for Intel 10th and 11th Generation processors. Featuring four DDR4 memory slots, dual M.2 NVMe SSD support, PCIe 4.0 compatibility, Gigabit LAN, and support for up to 128GB RAM, it provides a reliable platform for office systems, content creation PCs, and mid-range gaming builds.

Product Highlights
Intel B560 Express Chipset
Supports Intel 10th & 11th Generation LGA1200 Processors
4 DDR4 DIMM Slots Supporting Up to 128GB RAM
DDR4 Memory Overclocking Up to 5000+ MHz (OC)
PCIe 4.0 x16 Support with 11th Gen CPUs
Dual M.2 NVMe SSD Slots
6 SATA III 6Gb/s Ports
Realtek Gigabit LAN Connectivity
7.1 Channel HD Audio
Micro-ATX Form Factor

Full product details

Overview

Product name	Biostar B560MX-E PRO Intel B560 LGA1200 Micro-ATX DDR4 Motherboard
Category	Motherboards
Brand	Biostar
Model number	B560MX-E PRO
Enquiry only	No
Supports exchange	Yes

Pricing & MOQ

Base price	INR 8,400.00
Sample available	No
Sample price	INR 8,400.00
Min order quantity (MOQ)	1
Max order quantity	100

Technical Specs

Dimensions	244 × 244 mm
Weight	Approx. 1.2–1.5 kg
Technical specifications ChipsetIntel B560 Express CPU SocketLGA 1200 Form FactorMicro-ATX Memory TypeDDR4 Memory Slots4 x DDR4 DIMM Maximum Memory Capacity128GB BIOS TypeUEFI BIOS PlatformIntel 10th & 11th Gen Intel Core Processors Memory ArchitectureDual Channel Memory Speed SupportDDR4 2133 / 2400 / 2666 / 2933 / 3200 MHz Overclocking SupportUp to DDR4 5000+ MHz (OC) XMP SupportYes PCIe x16 Slot1 x PCIe 4.0 x16 (11th Gen CPU) Secondary PCIe x16 Slot1 x PCIe 3.0 x4 (Physical x16) PCIe x1 Slots1 Multi-GPU SupportNo M.2 Slots2 Primary M.2 SlotPCIe 4.0 x4 NVMe (11th Gen CPU) Secondary M.2 SlotPCIe 3.0 x4 NVMe / SATA SATA Ports6 x SATA III 6Gb/s RAID SupportRAID 0 / 1 / 5 / 10 HDMI Port1 VGA Port1 Integrated Graphics SupportYes Maximum HDMI Resolution4K UHD LAN ControllerRealtek Gigabit LAN Ethernet Speed10/100/1000 Mbps Wi-FiNo BluetoothNo Audio CodecRealtek ALC897 Audio Channels7.1 Channel HD Audio HD Audio SupportYes USB 3.2 Gen1 PortsYes USB 2.0 PortsYes Front USB HeadersYes Rear USB PortsMultiple
